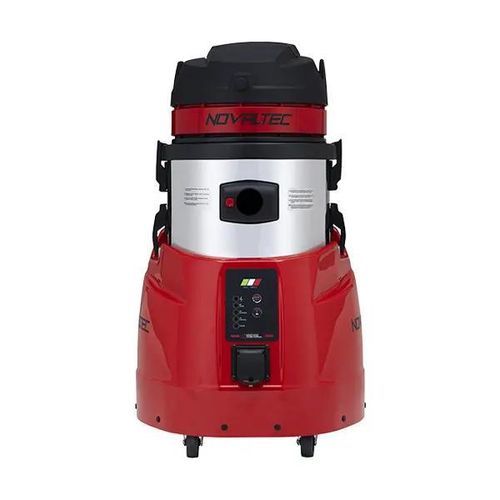

Industrial steam cleaner EASY-VAP 3.4 RC

commercial

Overview

• EASY-VAP 3.4 RC is a compact industrial steam generator designed for continuous steam cleaning and sanitisation in regulated environments.
• Refillable water tank during operation ensures near-unlimited steam autonomy for long production runs.
• Delivers dry steam at 175° C and meets HACCP requirements for food processing and catering applications.
• Large stainless-steel collection drum handles liquids and waste powder, simplifying maintenance.

Main features

• Refill water tank while the machine is running
• 1200 W vacuum motor for strong suction
• Steam output at 175° C suitable for sanitisation
• Large stainless-steel dirt collection drum (9 L)
• Separate detergent tank (3 L) and 5 L fresh water tank

Technical Data (table)
Power supply: 220/240 V - 50/60 Hz
Vacuum motor: 1200 W
Boiler heating element: 2200 W + 1200 W
Steam pressure: 8,0 ± 0,3 Bar
Boiler inner steam temperature: 175° C
Boiler volume: 4,9 l
Dirt collection tank capacity: 9 l
Water tank capacity: 5 l
Detergent tank capacity: 3 l
Control panel supply: 12 V
Safety valve (n°2): 9,5 ± 0,3 Bar
Boiler material: Stainless steel 18/10
Thermostat: 185° C
PCB: 220/12 V
Feeding cable: 6 mt
Dimensions (length x width x height): 460 x 530 x 840 mm
Weight: 23,5 Kg


Technical specifications

• Power supply: 220/240 V - 50/60 Hz
• Vacuum motor: 1200 W
• Boiler heating element: 2200 W + 1200 W
• Steam pressure: 8,0 ± 0,3 Bar
• Boiler inner steam temperature: 175° C
• Boiler volume: 4,9 l
• Dirt collection tank capacity: 9 l
• Water tank capacity: 5 l
• Detergent tank capacity: 3 l
• Control panel supply: 12 V
• Safety valve (n°2): 9,5 ± 0,3 Bar
• Boiler material: Stainless steel 18/10
• Thermostat: 185° C
• PCB: 220/12 V
• Feeding cable: 6 mt
• Dimensions (L x W x H): 460 x 530 x 840 mm
• Weight: 23,5 Kg
