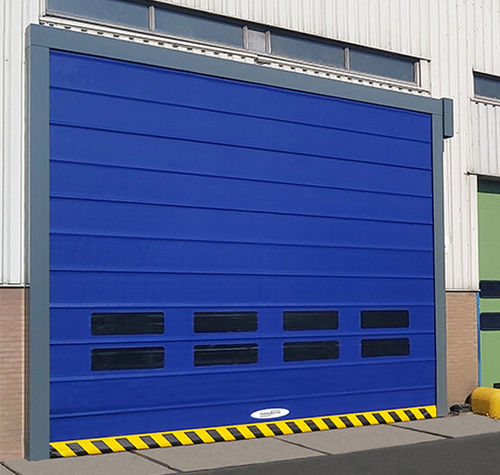

PVC industrial door NovoFold

foldingstainless steelautomatic

LONG SERVICE LIFE WITH VERY LOW MAINTENANCE The NovoFold folding door has been developed for intensive use in outdoor openings up to 36 m2 in size. Ideal for the fast daily passage of forklift trucks and large goods. The door curtain is equipped with a large number of reinforcement profiles and a unique folding technique, as a result of which it remains extremely stable even under high wind pressure. The fully closed covers and the materials used make the NovoFold suitable for long-term use under all conditions. APPLICATION • INSTALLATION IN THE EXTERNAL WALL (INSIDE AND OUTSIDE) • DISTRIBUTION CENTRES • LARGE INDUSTRIAL BUILDINGS • HEAVY INDUSTRY • WIND RESISTANT to min. 13 Bft Min. Class 3 according to EN12424 (standard) Min. Class 5 according to EN12424 (with reinforcement) • SOLID the guide columns and the drive are completely encased in watertight steel caps. This makes the NovoFold suitable for outside mounting. • EXTREME the unique folding construction and the materials used make the Novofold extremely reliable and robust, even under harsh conditions. The NovoFold is not affected by high wind pressure, rain, dust, etc. • SAFE fitted as standard with Opto-sensors in the lower beam: As soon as the lower beam touches something, the door opens immediately. The door opening is secured with safety photocells. • DRAUGHT SEAL the bottom beam has a soft rubber sealing profile, additional draught brushes are available as an option. • OUTSIDE powder-coated in RAL 7011 as standard.
