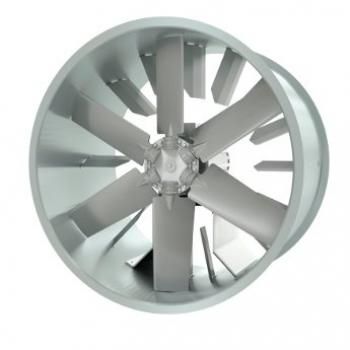

Axial fan AXUS SERIES
ductcommercialmetal

axial fan
axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Type
axial
Installation
duct
Sector
commercial
Material
metal
Other characteristics
acoustic
Air flow

Min.: 0 m³/s
(0 ft³/s)

Max.: 120 m³/s
(4,237.8 ft³/s)

Description

The AXUS range is manufactured from heavy gauge galvanised steel and available from Ø250 mm to Ø2000 mm. Nuaire AXUS fans are designed to offer maximum design flexibility. Using our bespoke Axial Configurator software, we can select the perfect axial fan for your specific project requirements. We offer flexibility in case size, case material, blade type, blade angle, blade material, motor position, motor type, and many other factors. This flexibility means there are millions of possible combinations for complete product flexibility. AXUS fans are available up to duties of 120 m³/s. Suitable for day to day environmental extract up to a maximum of 60ºC and once off emergency extract for either 300ºC or 400ºC for 2 hours depending on local fire code. Suitable for smoke reservoir and non-smoke reservoir applications. Selected to your exact project specific requirements. Wide range of control options available including our market-leading Ecosmart control platform. upto 120m3 /s duty range. Air performance to ISO 5801:2017 with acoustic performance to AMCA300.Comprehensive range of matching ancillaries available including attenuators, speed controls and mounting ancillaries.
