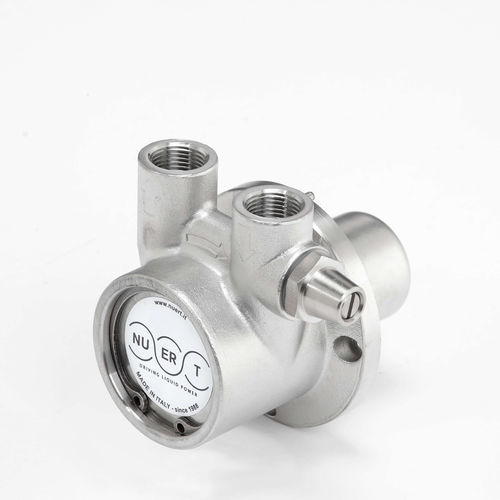

Chemical pump MAG PR

commercialelectricmetal

This pump model combines the typical advantages of positive displacement vane pumps with magnetic drive technology. They are characterized by the lack of a rotating mechanical seal, and they guarantee excellence retention, without any leaks or dripping even with difficult liquids. A magnetic coupling transmits motion from the electric motor to the pump and replaces the classic mechanical system with direct attachment. These pumps have a higher efficiency due to lower mechanical friction, and their reliability and durability are increased compared to models with a mechanical seal. They are ideal for handling chemical or aggressive liquids, especially as low energy consumption recirculation pumps. They can handle liquids with temperatures from -30 to +180 °C. MAG PR series pumps are perfect for applications in cooling systems, soda recirculation, chemical liquid transfer pumps, solar systems, reverse osmosis systems. The flow rate values refer to a rotation speed of 1,400 rpm. For speeds of 1,725 rpm a 20% increase must be taken into account. The maximum pressure that can be achieved is 14 bar and it depends on the type of magnet chosen. Depending on the application, we can supply the pump equipped with different types of electric motors, with the following options: - 110 or 230 V, 50 or 60Hz single-phase power supply - 12 or 24 V DC power supply - power from 80 to 370 W - for continuous or discontinuous service
