Wooden suspended ceiling DISLOCATIONtilefor officeindoor
Add to favorites
Compare this product
Characteristics
- Material
- wooden
- Type
- tile
- Room/use
- for office
- Location
- indoor
- Technical characteristics
- sound-absorbing
- Aesthetics
- 3D
- Width
400 mm, 800 mm
(16 in, 31 in)- Length
1,000 mm, 1,100 mm, 1,200 mm, 1,300 mm
(39 in, 43 in, 47 in, 51 in)- Thickness
32 mm
(1.26 in)
Description
“Dislocation”, complete patented system for suspended ceilings, which includes : fastening profiles, hangers, spacers, main runners, tile hooks and wooden tiles.
Module
dimensions - 3000 × 2400 mm
Module height - 301 mm + 190 plenum min.
Wood species -
References from the Prestige d'Oberflex collection

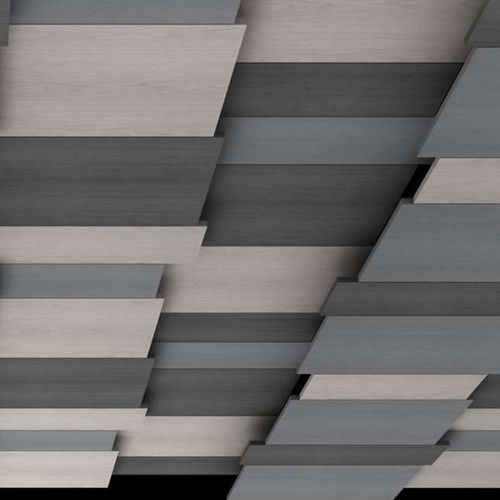

Presented model : Grey Oak T309 + Ashen Oak T310 + American Walnut T160
Other available surfaces : Pure Paper Color and Pure Paper Metal
Weight : tiles
+ system - 16 kg/m2
Fire rating - B s2 d0
Absorption
coefficient αw - 0,40
