Cable hanger GRIP M UNI

Product overview

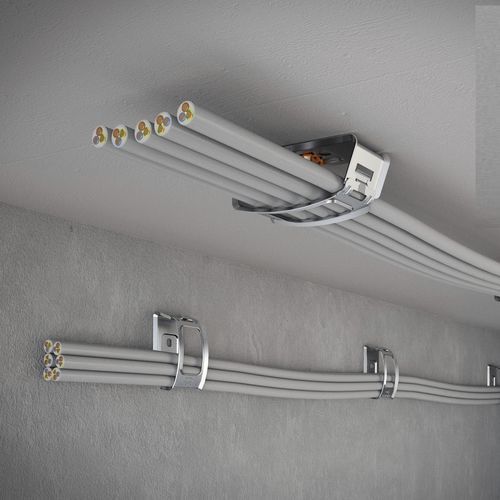

The Grip M UNI collector bracket is a universal mounting bracket for cable trunking and cables. It supports both direct anchoring with setting tools (one‑handed installation) and classic screw mounting. The bracket is designed according to the UNI principle and is available in sizes 10 and 20. It is made of steel sheet, can be opened without tools and closed by simple snapping.

Main features

• Universal fastening: direct anchoring with setting tool or screw mounting
• Patented, preassembled plastic universal adapter (compatible with Hilti, Würth, Spit, Fischer, Bosch)
• One‑hand assembly possible without magnetic nose on the tool
• Tool‑free opening and closing by snap fit
• Material: galvanized steel (steel sheet)
• Adapter absorbs setting energy and protects plastic trunking from damage

Universal adapter / mounting
The preassembled universal adapter enables direct anchoring with all common setting tools and protects plastic trunking (WDK, WDKH, Rapid 80®) from cracking and deformation during installation. In addition, a 6.5 mm fixing hole is provided for classic screw mounting. Suitable for trunking widths from 30 mm.

Fire and functional resistance
The UNI collector bracket is approved as a cable‑specific installation system for functional resistance according to DIN 4102 Part 12. Applicable functional resistance classes: E30, E60 and E90 (depending on the tested cables and installation parameters specified in the general building inspection test certificate). For functional resistance applications, nails must only be used with the corresponding usability verification.

System description (excerpt)
Installation type: cable‑specific support structure
Test certificate no.: P-MPA-E-26-001
Functional resistance classes: E30 to E90
Test standard: DIN 4102 Part 12
Mounting variants: direct wall and ceiling fastening using setting tool or screw mounting
Material execution: galvanized steel

Permissible data (excerpt)
Type | Fixing distance [m] | Cable load [kg/m]
2031 M UNI 10 FS | 0.8 | 1.0
2031 M UNI 20 FS | 0.8 | 2.0

Additional notes
The UNI product line allows selection on site between direct anchoring and screw mounting depending on the substrate, without keeping a second product in stock. The universal adapter is preassembled and increases on‑site flexibility.

Technical characteristics / specifications

• Product series: Grip M UNI
• Model variants: 2031 M UNI 10 FS, 2031 M UNI 20 FS
• Material: galvanized steel (steel sheet)
• Mounting: direct anchoring (setting tool) or screw mounting (6.5 mm fixing hole)
• Universal adapter: preassembled, compatible with Hilti, Würth, Spit, Fischer, Bosch
• Functional resistance: approved according to DIN 4102 Part 12 (E30, E60, E90) – test certificate P-MPA-E-26-001
• Recommended fixing distance: 0.8 m (for listed types)
• Cable load: 1.0 kg/m (UNI 10), 2.0 kg/m (UNI 20)
• Suitable for WDK and WDKH trunking from 30 mm and Rapid 80® trunking
