Exhibition stand WP-C2-LED.01

Overview

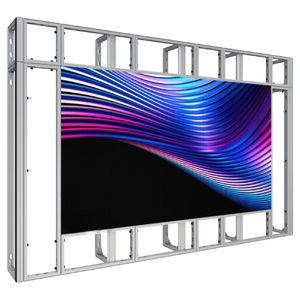

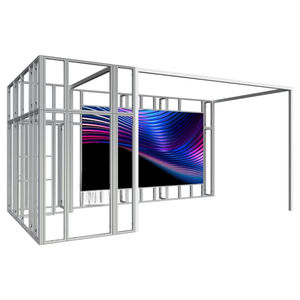

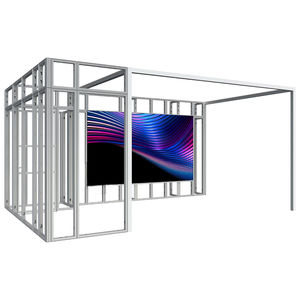

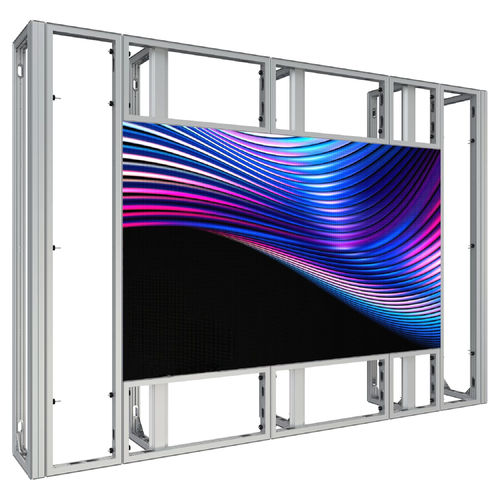

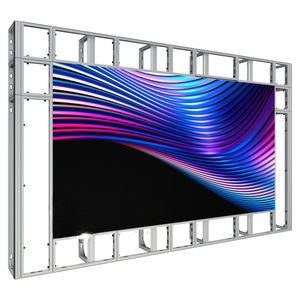

Substructure for free-standing LED video wall, supplied with structural analysis performed using octawall pro to maximize usable display area. Optionally equipped with 2 × octalux extrusions on the outer corners.

Application / Configuration
Designed as the substructure for a free-standing video wall. Page entries list wall dimensions: L 3.5 × W 0.5 × H 2.5 m and an alternate entry L 4 × W 0.5 × H 2.5 m. LED display area listed: W 2.5 × H 1.5 m.

Material

• Aluminium
• Available surface finish: matt anodized, silver (E6/EV1)

Technical Data
Length: 3530 mm
Width: 2480 mm
Height: 515 mm
Weight: 152.202 kg

Notes
LED panels are not included and must be sourced separately from third-party suppliers. Verify dimensions and compatibility with the chosen LED modules prior to ordering.

Specifications

• Product name: Substructure (WP-C2-LED.01)
• Intended use: Substructure for free-standing LED video wall
• Includes: Structural analysis from octawall pro for maximum display area
• Optional: 2 × octalux extrusion on the outer corners
• Wall dimensions (page entry): L 3.5 × W 0.5 × H 2.5 m
• Alternate dimension (page entry): L 4 × W 0.5 × H 2.5 m
• LED display area (page entry): W 2.5 × H 1.5 m
• Material: aluminium
• Surface finish: matt anodized, silver (E6/EV1)
• Length (technical data): 3530 mm
• Width (technical data): 2480 mm
• Height (technical data): 515 mm
• Weight (technical data): 152.202 kg
• Important: LED panels are not included
