Sliding and stacking partition MAXPARETE HSP

woodencommercialacoustic

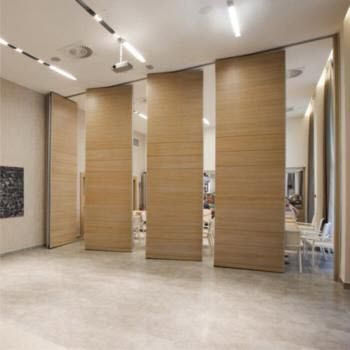

The MAXPARETE HSP operable partition represents the ideal solution in order to dinamically close rooms high up to more than 9 meters, assuring a perfect sound proofing. MAXPARETE HSP consists of independent panels which slide by ball bearing trolleys in a track fixed to the ceiling. This system eliminates floor guides or floor attachments which are antiaesthetic and encumber the way. When closed the partition is perfectly aligned and sound proof. The sliding is warranted by one or two ball bearing trolleys at a very high resistance. Every panel consists of a metal frame covered with high density chipboard panels 16/18 mm thick. These panels can be finished with a wide variety of finishings. Continuous floor and ceiling seals consist of soft rubber seals carried in an aluminium section manually operated by means of a control placed on the rabbets. The rubber seals carried in aluminium section are compressed against the floor and the covering of the track in order to lock panels. The last element of the wall has one more moving telescopic mechanism, with a side sliding. This mechanism is manually operated by a control placed on a side of the panel itself. Pass doors may be fitted to any intermediate panel (except for the telescopic closure panel) of the MAXPARETE HSP manouvrable walls without altering the normal functionality.
