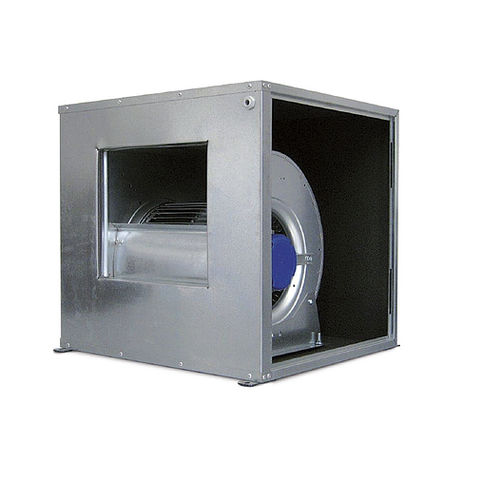

Plenum box CV D / CV-2P / CV-T

FEATURES Box fans directly driven with sound absorbing lining, equipped with double inlet centrifugal fan with forward curved blades. Highly suitable in ventilation systems. Series composed by 8 sizes, with flow rate starting from 1.230 m3/h up to 11.900 m3/h. Working temperature : +60°C. Lightweight self-supporting galvanised steel sheet lined with sound-absorbing material of thickness 5 mm. Equipped with power supply cable gland. Inspection door motor side with lock system CE compliance. Single phase motor 230 V or three phase 400 V, direct coupled, IP54 protected, Class F. Single speed as default, three speed version available on request. POSITIONING Floor mounting Shelf mounting Ceiling mounting ACCESSORIES ON DEMAND: Single-phase speed controller. Outlet connection with protection grille. Rubber feet. ENVIROMENTS APPLICATION CV-D box fans are recommended for domestic and industrial applications where the air to be treated is clean and a noiseless and reliable machine is required for installation. Shops. Laboratories. Craft workshops. Restaurants, bars, canteens. Supermarkets and Shopping Centers. Offices. Houses. Rain cover.
