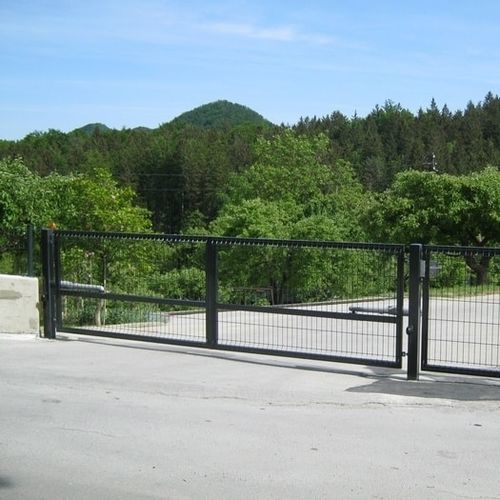

MOTORISED DRIVES FOR DOUBLE SWING GATES
Motor operators for double swing gates are supplied in a KIT version, which includes all the necessary elements to operate the gates.
The set already includes two remote controls, but the customer can order more. The base of the actuator is attached to the gate pillar and the other part to the gate frame. The drives are housed in a watertight enclosure. The basic criteria for selecting an actuator are the door frame's length, opening frequency and supply voltage.
The optional installation of a PLA horizontal electric lock is recommended.
SET INCLUDES
2 24V wing motors
1 control panel
1 built-in receiver
2 FLO2RE transmitters
1 pair of photocells BF
3 photo cell carriers PO
1 LUCY warning light
Post and gate frame mounting brackets
Opening frequency: - up to 30 openings/hour
Power supply: - 24 V
Max. length of the neck skirt: - 2 m; 3 m
Max. bright opening: - 4 m; 6 m
Opening/closing speed: - 0,016 m/s; 0,04 m/s
Installation method: - Screw Post - Wing
Max. the weight of the gate frame in relation to the width of the gate frame: - 1,7m/500kg
2,5m/350kg
3.0m/300kg
Temperature range: - -20 to +50 degrees
The thrust force of the actuator: - 1800 N
Max. opening angle: - 130 degrees
