CANTILEVER AND LINE GATE MOTOR DRIVES
Motor drives for inline cantilever or track sliding gates are supplied in a KIT version, which includes all the necessary components to drive the gates.
The set includes two remote controls, but the customer can order more. A gear motor drives the gates via a toothed slat attached to the gate structure.

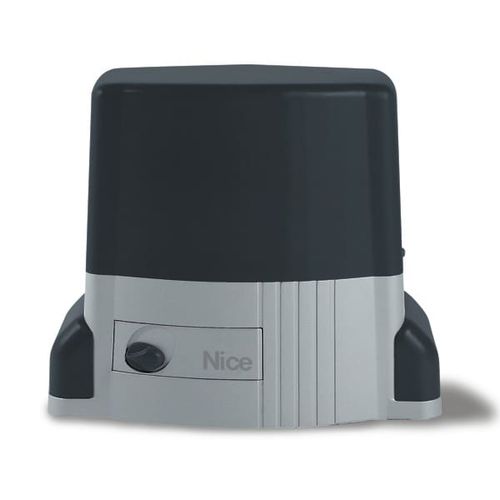

ROX and ROBUS actuators are housed in their watertight enclosure and are mounted on the gate's foundation. The NAKED SLIDING actuator is without a case and is designed to be installed in the pillar of linear gates.
The basic criteria for selecting an actuator are the weight of the gates, the length of the clear opening of the passage and the frequency of opening.
Advantages in safety and comfort:
- On-board obstacle detection system (retreats when overloaded)
- slowing down at the beginning and end of opening and closing
- personalised passage option (opens for any preset length)
- Robus is one of the fastest drives on the market in this class!
- intelligent two-wire BlueBus connection of elements (up to 15 devices!)
- emergency power supply via battery (PS124) in case of mains power failure - optional
- Compatible with Nice OPERA
- compatible with Nice SOLEMYO solar system
SET INCLUDES
1 230V motor with integrated receiver
2 FLO2RE transmitters
1 pair of photocells BF
2 PO photocell carriers
1 LUCY warning light
galvanised drive bracket
up to 7 m galvanised metal lath
Opening frequency: - Low
Power supply: - 230 V
Max. the weight of the door: - 1500 kg
Max. bright opening: - 10 m
Max. length of the wing: - 12 m
Opening/closing speed: - 0,16 m/s
Installation method: - freestanding
Engine power:
