Insulating glass panel KAPILUX W
fire protectiondouble-glazedtransparent

Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent - image - 2
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent - image - 3
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent - image - 4
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent - image - 5
Insulating glass panel - KAPILUX W - OKALUX Glastechnik GmbH - fire protection / double-glazed / transparent - image - 6
Add to favorites
Compare this product

Characteristics

Technical characteristics
insulating, fire protection
Type
double-glazed
Appearance
transparent
Finish
colored, printed
Applications
for facade, for window
Color
white
Other characteristics
custom-made
Length

6,000 mm
(236 in)

Width

2,000 mm
(79 in)

Depth

28 mm
(1 in)

Description

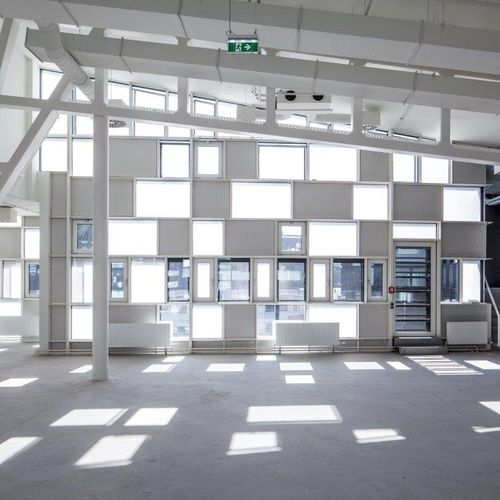

KAPILUX W light-diffusing insulating glass offer numerous advantages: The transparent capillary slabs in the cavity allow for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, and the heat insulation is improved by the capillary tubes. The transmission values can be individually adjusted to the requirements. What makes it different from KAPILUX T with transparent capillaries is that these are colored white in KAPILUX W, thus satisfying increased requirements on sun and glare-protection. High Functionality Optimal, even illumination of the room, without hard shadows Effective sun and glare protection High light transmission, light entry can be adjusted individually High colour rendering Good heat and sound insulation Protection from UV rays Bird-friendly solution Fire protection according to requirements Sustainability Daylight entry reduces amount of artificial light required Reduction of cooling loads in summer Fully recyclable Long-Lasting, maintenance-free and easy to clean Attractive Aesthetics Attractive appearance Vivid surface with depth effect Capillary inserts can be printed with colour and décor User Comfort Comfortable daylight atmosphere Effective privacy protection Reduced amount of solar input into the building Partial Vision
