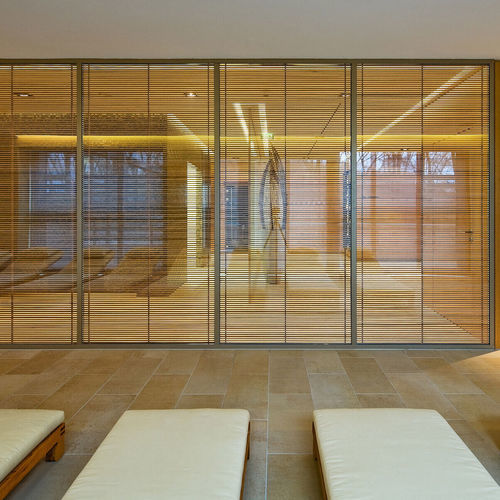

Insulating glass with functional timber insert. OKAWOOD timber grid unites high functional demands with an especially attractive design and comfortable atmosphere. A filigree timber grid in the cavity serves as direction-selective sun and glare-protection depending on the position of the sun and angle of irradiation. Daylight in a warm hue enters the interior through the gaps between the staffs. Transparency and light transmission can be adjusted to the individual requirements.

Benefit

• High Functionality
• Effective, direction selective sun and glare protection
• View and light transmission can be adjusted at the factory
• Embedding in a Multifunctional Module (MFM) is possible
• Fire resistance according to requirements
• Visibility as bird protection function
• Sustainability
• Renewable material
• Timber Grids originate from sustainable forest cultivations
• The glass protects the high-quality inserts from adverse weather conditions
• Long-lasting, maintenance-free and easy to clean
• Fully recyclable
• Variety of Design and Attractive Aesthetics
• Natural appearance with unmistakable character
• Vivid building shell
• Consistent design concepts from the façade to the interior can be realized
• Sophisticated Interior-Design-Solutions, for example as partition, privacy or exhibition architecture
• User Comfort
• Comfortable atmosphere through warmly tinted light
• Smart perception of surroundings

Build-up + Function
The filigree horizontal wooden rods with a face width of 10 mm are supported at intervals of 50 - 60 cm by 10 mm wide vertical joists. As a rule, the wooden insert is installed in combination with a heat insulation layer on the inner pane. Recommended: toughened safety glass (ESG/ESG-H) or laminated safety glass (VSG) made of toughened glass (TVG) as the inner or outer pane.

Technical Data

• Maximum dimensions Abachi, White Seraya*: 1,700 mm x 3,500 mm, larger sizes upon request

Performance Table
OKAWOOD timber grid
Total Thickness
U_g-value [W/(m²K)]
TSET
Light Transmission
Double glazing¹
mm
Krypton
Argon
Air
(%) min.² - max.³
(%) min.² - max.³
Double glazing build-up with a functional low-e coating at face #3 vertical glazing
² for angle of incidence γ = 60°
³ for angle of incidence γ = 0° (vertical to the glass surface)
*on request from 400 sqm

Caractéristiques / spécifications techniques

• Product type: Insulating glass with functional timber insert
• Timber grid: Filigree, direction-selective sun and glare protection
• Adjustable transparency and light transmission
• Maximum dimensions: 1,700 mm x 3,500 mm (Abachi, White Seraya)
• Fire resistance: Available upon request
• Bird protection: Visibility function
• Material: Timber from sustainable forests, protected by glass
• Maintenance: Long-lasting, maintenance-free, easy to clean
• Recyclability: Fully recyclable
• Recommended glass: Toughened safety glass (ESG/ESG-H) or laminated safety glass (VSG) made of toughened glass (TVG)
• Applications: Façade, partition, privacy, exhibition architecture
