Multi-level parking system TRIPARK

mechanicalelectrichydraulic

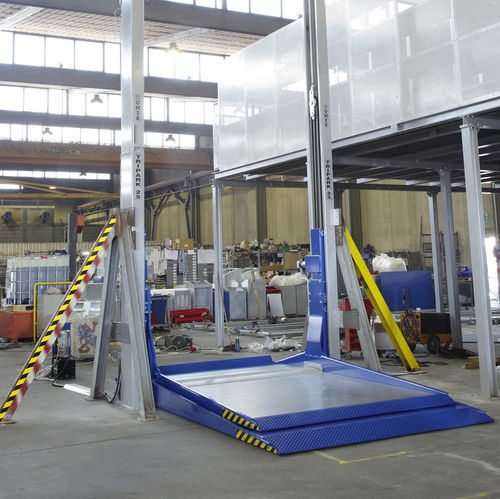

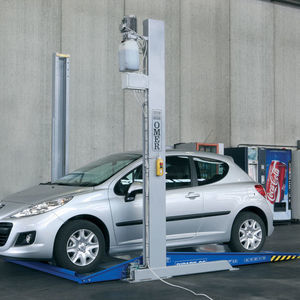

Tripark is a dependent double stacker (multiplier parking stacker) that allows up to three vehicles to be parked in a single parking bay. It is compact, easy to install and each platform is rated to lift vehicles up to 2,500 kg.

Overview
The unit is designed for situations with very limited space: compact construction minimizes footprint while allowing secure stacking of up to three vehicles. Each platform supports up to 2,500 kg, covering the majority of passenger vehicles on the market.

Operation and sequence
The system operates with a package sequence: after removing lower vehicles, the lower platform raises to engage the upper platform, freeing it to be lowered to ground level. This sequence maintains compactness during movement and is engineered for safety.

Upper platform and vehicle removal
The upper platform is supplied with an integral ramp to facilitate straightforward vehicle removal and entry. The ramp is permanently fixed to the upper deck to ensure reliable operations.

Platform design and safety
Platforms are completely smooth and hot-dip galvanized for corrosion protection and user access. The rising toecap is manufactured from almond-pattern metal sheet to reduce wheel or foot slippage. Front stops (final terminals) and a slight downward bend at the platform front help position wheels and prevent rollback.

Structure and movement
The supporting structure and column guides ensure smooth, quiet sliding of platforms while securing the vehicle. Columns are positioned slightly forward (not centered) to ease opening vehicle doors on both upper and lower platforms.

Mechanical and hydraulic safety systems
The upper platform is fitted with a torsion bar and associated locking devices that engage at preset intervals. An electrically actuated mechanical locking stopper, when closed, provides mechanical engagement every 3 cm and permits hydraulic oil return to the tank, preventing unnecessary pressure build-up in the hydraulic circuit.

Controls and adjustments
An electrical micro-switch provides slowdown and stopping of platforms at preset positions; it is fully visible for maintenance and emergency interventions. Pinion-to-rack position on the torsion bar support can be adjusted by shifting the support. All micro-switches along the column can be repositioned on their adjustment cursor.

Upper-platform transverse safety
A transversal safety mechanical bar is fitted under the upper platform; if the lower platform rises and contacts this bar (for example due to a micro-switch fault), it mechanically stops ascent to avoid crushing the vehicle.

Characteristics / technical specifications

• Model: Tripark
• Type: Dependent double stacker / Multiplier parking stacker (parks up to 3 vehicles in one bay)
• Platform load capacity: 2,500 kg per platform
• Platform finish: completely smooth, hot-dip galvanized
• Rising toecap: almond-pattern metal sheet to prevent slipping
• Integral ramp on upper platform for vehicle removal
• Support structure: sliding movement along columns, robust construction for vehicle security
• Upper platform: torsion bar with locking systems
• Mechanical locking stopper: electrically actuated; provides mechanical lock every 3 cm and allows hydraulic oil return
• Electrical micro-switches: allow slowdown/stop at preset positions; fully visible and adjustable
• Torsion bar support: adjustable pinion vs. rack position
• Column positioning: shifted forward on platforms to ease door opening
• Platform front geometry: slightly down-bended front to help wheel positioning and prevent rollback
• Transversal safety bar under upper platform: mechanical stop in case of malfunction
