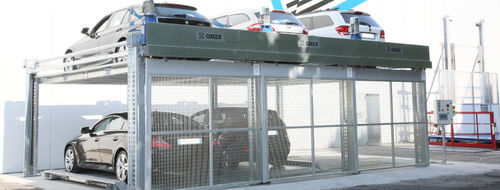

Modular parking system STORE-PARK

semi-automaticmechanicalelectric

Store-Park is a semi-automatic, modular, self-standing parking system designed to multiply parking capacity while remaining easy to install and operate.

Key features

• Modular, replicable design: independent modules can be assembled longitudinally to manage dozens or hundreds of cars.
• Self-standing structure: no supporting walls required; columns bolted together and tied by transverse beams.
• Two platforms per module: upper platform (longer) and lower platform (shorter) with slatted, smooth surface and a front wheel stopper for precise vehicle positioning.
• Upper platform length 5.2 m to accommodate standard vehicles; lower platform shorter to allow lateral sliding while still accepting long cars.
• Upper platforms lift vertically on columns via a chain-return system driven by torsion bars and pinions; one torsion bar per module ensures balanced lifting.
• Lower platforms slide laterally using a fixed tooth bar engaged by a pinion on each lower platform; movement actuated by a hydraulic cylinder connected to a chain.
• Cam-activated limit switch stops sliding platforms in the correct position.
• Compact electric motors mounted vertically above the first column of each module; main cables and motors placed on upper beams for easier installation and maintenance.
• Mechanical safety: corner safety locks on each upper platform hook the column rack in case of chain failure; locks are sensor-linked to activate simultaneously and prevent imbalance.
• Doors: one 4-panel door per module (manual or automatic) with galvanized grid panels and anodised aluminium frame; electromechanical door lock released by parking-spot code.
• Traffic-light signalling with three colours (red/green/yellow) and a manual 'close doors' push-button every three modules as a dead-man safety procedure.
• Control: compact electrical panel; touchscreen control can be integrated or mounted separately.

Detailed operational notes

• Lower platform sliding: each lower platform has a pinion that engages the longitudinal tooth bar; rotation of the pinion slides the platform sideways.
• Lower platform actuation: hydraulic cylinder located under one side transmits movement via a chain to the pinion.
• Limit switch and cam: a cam moved by the sliding platform triggers a limit switch positioned on the platform to stop it precisely and, if necessary, trigger mechanical safety locks.
• Upper lifting balance: torsion bars above the columns ensure balanced vertical movement of the upper platforms and prevent unbalance during lifting.
• Door sliding and drive: door rail is positioned at the lower part of the frame; the door is driven by galvanized hooks connected to the movement chain and an electric mover mounted beside the rail.

Installation advantages

• Self-standing, bolted structure simplifies site requirements and reduces the need for special supporting works.
• Electrical components and motors placed on upper beams reduce ground-level clutter and simplify maintenance access.
• Modular replication enables straightforward capacity expansion where space permits.

Technical specifications

• Product: Store-Park (semi-automatic modular parking system)
• System type: semi-automatic, modular, self-standing
• Platforms per module: 2 (upper + lower sliding)
• Upper platform length: 5.2 m
• Platform construction: slatted platforms (upper longer, lower shorter)
• Lower platform sliding: tooth bar + pinion; hydraulic cylinder + chain actuation
• Upper platform lifting: chain-return system with torsion bars and pinions (one torsion bar per module)
• Motors: vertical placement above first column of each module; electrical panels compact on upper beams
• Safety: mechanical corner locks on upper platforms (sensor-linked), cam-activated limit switches, electromechanical door locking with code release
• Doors: 4-panel doors per module with galvanized grid panels and anodised aluminium frame
• Signalling: three-colour traffic light (red / green / yellow)
• Control interface: compact electrical panel with optional touchscreen
• Safety procedure: manual door closing (dead-man) with 'close doors' push-button every three modules
