Metal ventilation aperture silencer LARGOmineral wool
Add to favorites
Compare this product
Characteristics
- Material
- metal, mineral wool
Description

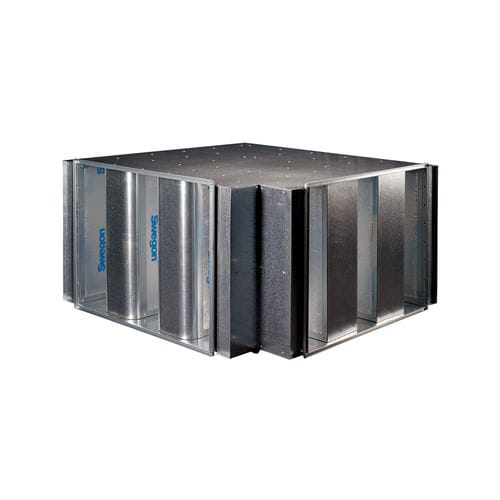

Angled sound attenuator with recessed connection for rectangular ducts
LARGO is, due to its unique design with connection facing the side splitters, suitable for use both in ducts and in direct connection to the air handling unit. A low pressure drop is obtained as the baffle elements also serve as guide vanes for deflecting the air flow.
Very compact rectangular attenuator
Excellent aerodynamic characteristics
Very low pressure drop – splitters function as trim rails
Environmentally friendly acoustic material, approved by independent test institute: ISOVER Cleantec® PLUS
Washable surface layer ISOVER Cleantec® PLUS.
Can be supplied with inspection hatch
Fire protected version with 50 mm mineral wool also available
Connection dimensions from 400x300 mm to 2000x2000 mm
Included in the MagiCAD database
