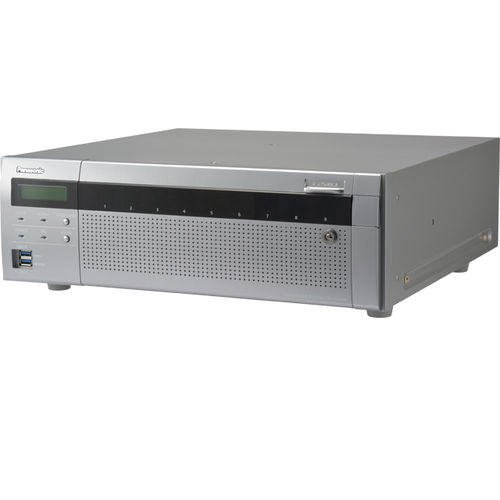

Remote monitoring video recorder WJ-NX400

EthernetdigitalIP

The WJ-NX400 is a TURBO-RAID System Recorder supporting full data encryption streaming recording for all i-PRO Extreme cameras which comply to FIPS 140-2 Level 1 standards, to keep your video secure from spoofing and snooping activities. WJ-NX400 connects up to 128 cameras and combines the simplicity of use and the benefits of IP-based video surveillance system. Moreover, H.265 & monitor output function are supported. The Network Disk Recorder provides a full-featured IP video surveillance system including live viewing, recording, alarm functions, searching, networking and management. The NVR is aimed at applications such as public safety (cities, roads, highways, ports, transportation (airports, trains, subways), banking, retail and many many more. Compatible Vendor - Panasonic i-PRO series Network cameras, ONVIF NVT conformant camera and encoder Supported Image Format - H.265(HEVC), H.264, JPEG Supported Image Resolution - ・Aspect ratio [4 : 3] 4,000x3,000, 2,560x1,920, 2,048x1,536, 1,280x960, 800x600, 640x480 ・Aspect ratio [16 : 9] 3,840x2,160, 2,560x1,440, 1,920x1,080, 1,280x720, 640x360 ・Aspect ratio [1 : 1] 2,992x2,992, 2,816x2,816, 2,048x2,048, 1,280x1,280 ・Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640 Supported Audio Format - G.711 for Onvif, G.726 (ADPCM) 32 kbps Maximum Number of Cameras - MAX. 128 (Default number of cameras : 64) Recording Mode - Event, Schedule, Emergency Pre-Alarm Recording - Up to 15 seconds *When the delivery speed from the network camera is less than 3 Mbps. Sub-Stream Recording - 768 kbps (fixed data size) Scheduled Recording Mode - 16 programs, 3 time zones/day, Independent setup for each day of the week
