Industrial use container construction AIS-3 ‎

for construction sitemodulargalvanized steel

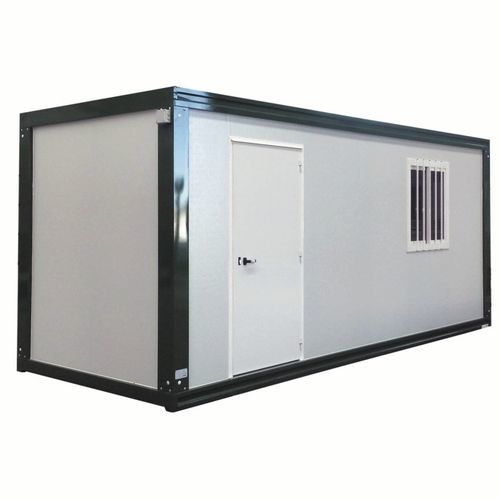

The AIS-3 Model is designed as a large site office or hut and is manufactured entirely on our ‎premises at Panelais Producciones in Huerta, Salamanca. Both the floor and ceiling frames, as ‎well as the corner pillars, are cold-formed and folded galvanized steel profiles. The façades ‎are enclosed with Sandwich Panels, the floor with a waterproof board and vinyl cladding, and ‎the roof with a sheet ribbed on the exterior, the thermal insulation is glass-fibre, and folded ‎sheet trays form the false ceiling. The roof discharges water to two gutters integrated in the ‎girders on the short sides of the roof frame which, in turn take rainwater to 4 downpipes in ‎the corner profiles.‎ The AIS-3 model includes the door, window, electrical installations and lights. It does not ‎include heating/air conditioning, which is optional (electric radiators or Split-type air ‎conditioning systems for heat and cold).‎ Dimensions (mm)‎ - ‎5840×2350‎ Headroom (mm)‎ - ‎2278‎ Surface (m2)‎ - ‎13.72‎ Exterior door (mm)‎ - ‎975×2060‎ Exterior window (mm)‎ - ‎975×1045‎ Waterproof chipboard 19MM - YES Phenolic plywood 18MM - Optional Vinyl floor covering - YES Distribution panel and protection - YES Sealed screen 2x18W - ‎–‎ Sealed screen 2x36W - ‎1‎ ‎10A switch‎ - ‎1‎ ‎16A Socket base‎ - ‎2‎ LENGTH (mm)‎ - EXT. 5840‎ INT. 5680‎ WIDTH (mm)‎ - EXT. 5840‎ INT. 5680‎ HEIGHT (mm)‎ - EXT. 2570‎ INT. 2275‎
