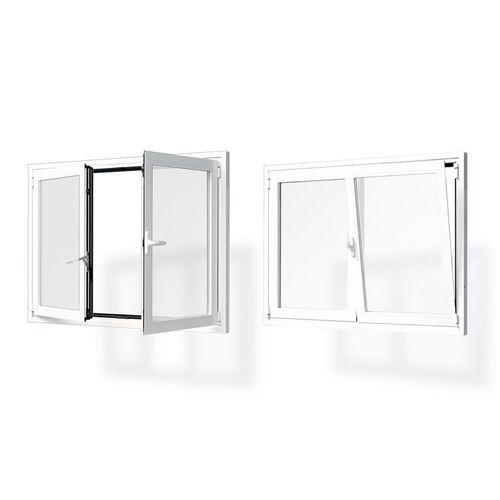

Casement window SERIE S-5020 ALU

fixedtiltingglass

Casement or tilt window with 1 or 2 lleaves in European profile, white lacquered aluminium, for fitting in interior or principally exterior walls, thinner carpentry for new or existing structures, either temporarily or permanently. The window is ideal for both exteriors and interiors, smooth and unobtrusive in appearance, and is an economical solution for enclosures, combining lightness and quality. The frame is 40 mm deep formed by a European profile with a 35 mm exterior aluminium overlap, and 35 mm aluminium interior counterframe for a 40 mm panel. It is assembled with mitre joints and locking brackets. Windows with a blind also have an aluminium guide frame lacquered in white. The European profile leaf is 40 mm thick, formed by a perimeter profile without a crossbar in aluminium, and assembled with mitre joints and locking brackets. It is ready for glazing with glass between 4 mm and 23 mm thick in a frame, with a white aluminium cremone lock and tilt system. The hinges are made in extruded, anodised and painted aluminium with a bolt in galvanized steel. Options Measurements on request. Aluminium lock in black or white. Exterior or interior. Fixed, aluminium insect net, or rolled from the outside. Special counterframe in aluminium for 60 mm panel. PVC caisson and aluminium slats for the blind. Exterior grille in aluminium tubing. Ask for other colours
