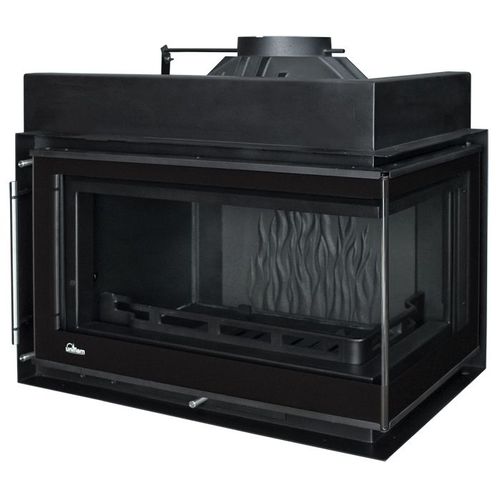

Corner fireplace insert UNIFLAM 850 PRESTIGE PBS

wood-burning

Cast-iron Insert - nominal power: 12 kW - efficiency: 74,5% - average CO emission: 0,22% - average temperature of the combustion gases: 322 °C - max. length of wood logs: 50 cm - outlet of the combustion gases diameter: 200 mm - weight: 157 kg - clap - direct air supply from outside - air supply regulation - right corner glasspane (bent) - vitroceramic windowpane decorated with black trimming - deflector - ashbox - fire grate - fuel: wooden logs - 5 year guarantee - compliant with the norm EN 13229 - certificate CE - made in: Poland The insert is equipped with a an outside air supply system due to a special moulder mounted (comes with the insert). There is a option to connect a rectangular 150x50 mm ventilation duct or a ventilation pipe with a diameter of 100mm. Advantages of the Uniflam Prestige fireplace insert Direct air supply from outside The insert has been equipped with a direct air supply system from outside. The air can be supplied via a Ø100mm flex duct or a rectangular channel of 150x50mm. Clap The clap allows to adjust the chimney draft and control the chimney burning rate. The is placed in the upper part of the insert’s facade. Air supply adjustment The amount of the air supplied to the combustion process is controlled by the knob placed in the bottom part of the facade. The air is taken from a direct air intake and supplied under the firegrate as well as directly on the fireplace windowpane creating an air curtain which prevents excessive windowpane soiling. Easy use Spacious, slide-out ashtray, cast iron grate and efficient air curtain system make the exploitation and maintenance of such a fireplace insert easy and time-saving.
