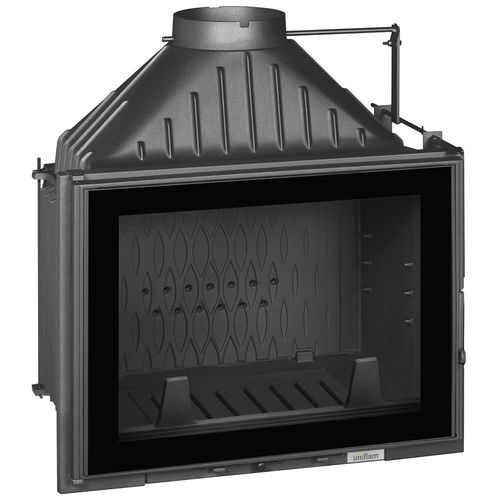

Wood-burning fireplace insert UNIFLAM 700 PLUS ECO (AIR SUPPLY)

Cast-iron Insert UNIFLAM 700 PLUS ECO with clap, air supply ref. 907-697-DP - nominal power: 12 kW - efficiency: 77% - average CO emission: 0,11% - average temperature of the combustion gases: 310 °C - max. length of wood logs: 50 cm - air supply: Ø100 mm / 150x50 mm - outlet of the combustion gases diameter: 200 mm - weight: 133 kg - clap - direct air supply from outside - secondary combustion system - primary air supply regulation - vitroceramic windowpane decorated with black trimming - deflector - ashbox - grill - fuel: wooden logs - 5 year guarantee - compliant with the norm ECO DESIGN - compliant with the norm EN 13229 - certificate CE - certificate FLAMME VERTE - manufacturer: UNIFLAM - France The insert is equipped with a an outside air supply system due to a special moulder mounted (comes with the insert). There is a option to connect a rectangular 150x50 mm ventilation duct or a ventilation pipe with a diameter of 100mm. Advantages of the Uniflam Plus fireplace insert Direct air supply from outside The insert has been equipped with a direct air supply system from outside. The air can be supplied via a Ø100mm flex duct or a rectangular channel of 150x50mm. Clap The clap allows to adjust the chimney draft and control the chimney burning rate. The is placed in the upper part of the insert’s facade. Easy use Spacious, slide-out ashtray, cast iron grate and efficient air curtain system make the exploitation and maintenance of such a fireplace insert easy and time-saving. Wide view of burning wood Large glasspane with black decoration provide an ideal vision of fire.
