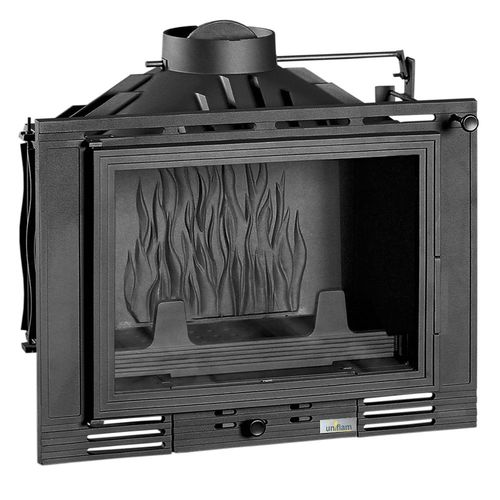

Cast-iron Insert UNIFLAM 700 ECO with clap, air supply ref. 907-675-DP
- nominal power: 8 kW
- efficiency: 76%
- average CO emission: 0,10%
- average temperature of the combustion gases: 319 °C
- air supply: Ø 100mm / 150x50 mm
- max. length of wood logs: 50 cm
- outlet of the combustion gases diameter: 180 mm
- weight: 98 kg
- direct air supply from outside
- clap
- primary air supply regulation
- deflector
- ashbox
- grill
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm BImSchV2
- compliant with the norm EN 13229
- certificate CE
- certificate FLAMME VERTE
- Energy class: A
- manufacturer: UNIFLAM - France
The insert is equipped with a an outside air supply system due to a special moulder mounted (comes with the insert). There is a option to connect a rectangular 150x50 mm ventilation duct or a ventilation pipe with a diameter of 100mm.
material - cast iron
warranty - 5 years
nominal power - 8 kW
efficiency - 76%
ECO DESIGN - YES
avg. CO emission - 0,10%
avg. fumes temperature - 319 °C
diameter of the fume nozzle - 180 mm
air supply - Ø 100mm lub 150x50cm
max. length of wooden logs - 50 cm
fuel - wood
producer - Uniflam
weight [kg] - 98.0000
