e-Smart Slim is designed modernistically and ergonomically for a convenient use. It is the most advanced and innovative locker locks with various types of lock selections. Not only offering an RFID locks, but also offering keypad and e-paper(e-display) options. By using the locks, it will allow you efficient management with high security.
e-Smart Slim Series, which consists of Locks, Transmitters (Access Point device), and a Server/Client program, is a wireless On-line lock system integrated with wireless controlling and monitoring functions as same as e-Smart Ultra Online Lock. e-Smart Slim provides, slim and ergonomic designs on top of the all the functions Ultra has.

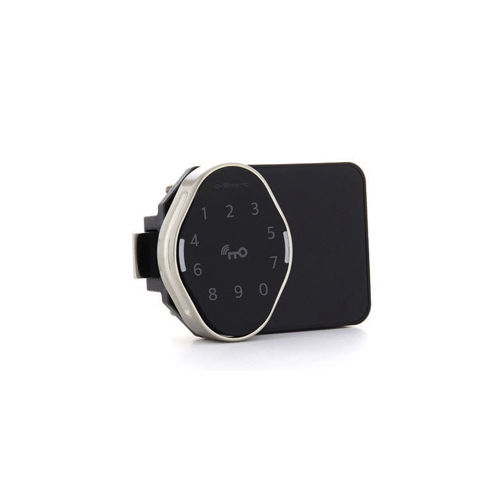

e-Smart Slim touch screen Lock (Model : SL600TWR) has all features from Ultra lock systems.
• Power: 6V (1.5V AA Battery x 4pcs)
• Operation Frequency: 13.56MHz
• Protocol Supported: ISO14443 Type A/B, Felica, Mifare Classic/Ultralight/DESfire/NFC
smartphone and other types of RF cards are available with reconfiguration
• Communication with Transmitter: 2.4Ghz Wireless
• Operating Temperature : -10℃ ~ 60℃
• FCC, CE, KC Certified, and ADA Compliant
• Close and Open by 13.56Mhz Mifare RF Tag
Durable and Enhanced design (IP55)
• High impact polycarbonate & waterproof case (IP55)
• Aluminum die-casting locking mechanism Spring Latch & Deadbolt
Audit Trail function
• Up to 150 lock history events as default (Offline)
• Online audit trail
Wireless on-line system
• Simple installation eliminating heavy work and cost
• Flexible locker relocation
• No risk of entire system suspension on the occasion of mal-function of the Server thanks to
battery operated independent lock operation from the Server
