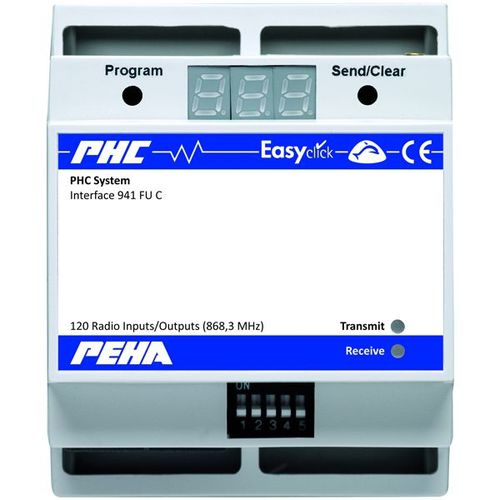

Easyclick PHC interface The Easyclick PHC interface permits bidirectional connection between the Easyclick radio transmitters and receivers and the PHC system, this includes connecting cable 30 cm, 72 mm wide (4 module widths). The Easyclick PHC interface has 120 inputs for Easyclick transmitters; it converts the radio signals from these into input signals for the PHC system. Up to a total of 240 individual transmitter channels (pushbuttons etc.) distributed over any number of inputs can be trained. The Easyclick PHC interface also has 120 outputs for Easyclick switching receivers, shutters/blinds receivers, and dimmer receivers. The Easyclick PHC interface 941 FU-C must be programmed using the PHC software, version 2.8 and above (German version) Technical data: Power supply: 24 V DC via the PHC bus Internal consumption: 30 to 40 mA Operating controls: 2 pushbuttons "Program" and "Send/Clear" Display elements: 2 LEDs, send (red) and receive (green) 3 x 7 segment display for channel setting Transmission frequency: 868.3 MHz Terminals: 2 modular sockets for the PHC bus 1 aerial socket for an external aerial (460 ANT is needed)
Suitable for protection level: IP20
