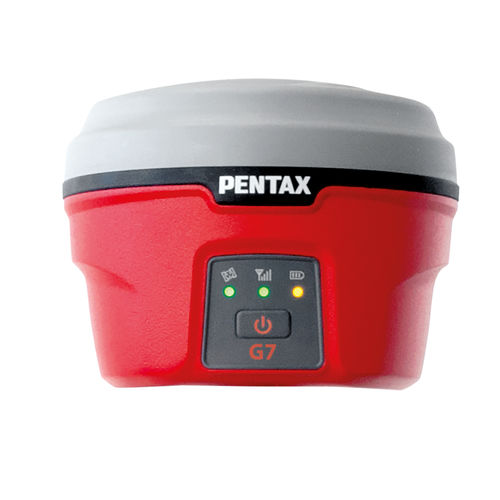

GNSS receiver SERIES G7

GPSGLONASSGALILEO

Powerful GNSS engine with 555 channels. High precision GNSS receiver with tough and light-weighted housing made of magnesium alloy. Fast and stress-free RTK operation by taking advantage of Calibration-free IMU sensor Swappable Batteries for continuous long time operation WiFi for direct communication with web browser for e.g. downloading data, firmware upgrades and communication between receiver and controller/PC G7 555 channels Signals trackable: GPS: L1 C/A, L1P, L1C, L2P, L2C, L5 GLONASS: L1 C/A, L2C, L2P, L3, L5 BEIDOU: B1, B2, B3 GALILEO: E1, E5 AltBOC, E5a, E5b, E6 QZSS: L1 C/A, L1C, L2C, L5, L6 SBAS: L1, L5 NavIC (IRNSS): L5 L-Band: up to 5 Channels + Compact and durable metal housing + Better dust and weather resistance (IP67) + Equipped with calibration free IMU sensor that compensates tilting of the receiver + WiFi for direct communication with web browser for e.g. downloading data, firmware upgrades and communication between receiver and controller
