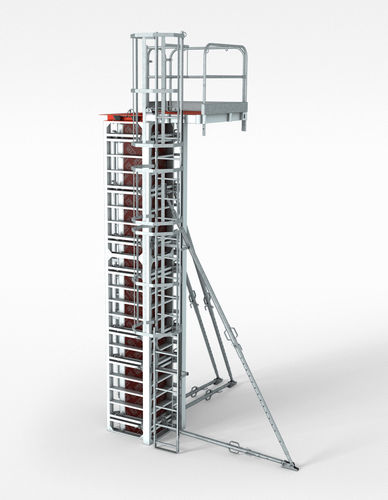

Beam formwork RAPID

modularmetalcolumn

Through a unique clamping principle for the RAPID, the formlining is simply clamped to the frame thus avoiding any nail or screw imprints. With full-surface formlining panels, high quality architectural concrete surfaces can be realized. RAPID is correspondingly designed to accommodate particularly high fresh concrete pressures. For architectural concrete surfaces without any impressions with freely-selectable, clamped formlining Also for sharp-edged column cross-sections with suitably milled formlining Fast basic assembly due to lightweight aluminium panels along with a simple clamping principle for the fi xing of formlining For square and rectangular cross-sections continuously up to 60 cm x 60 cm (58 cm for sharp edges) Cross-sections from 85 cm x 85 cm up to 130 cm x 130 cm with waler for bracing and additional anchor Height adjustments up to maximum 8.10 m in 30 cm increments with 3 different panel heights (0.60 m / 2.10 m / 3.00 m) Panel connection when extending the frames with bolts (factory fitted) in the top column strut Maximum permissible fresh concrete pressure 120 kN/m² With working and concreting platforms as well as access ladders
