Galvanised steel scaffolding PE

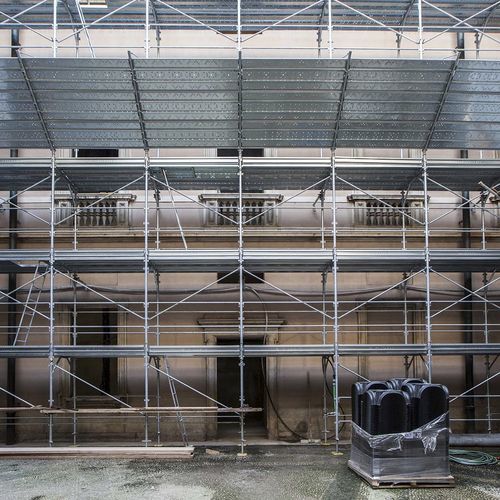

High performance modular frame scaffolding system suitable for facade works in residential and industrial job sites thanks to its wide range of solutions. Modularity makes it easy and quick to erect. Locking bushes welded to frames enable fast connection of ledgers, braces and accessories without the need for any special tools. Models: PE 105-180, PE 72-250, PE 105-250 Certified under European Standards EN 12810-1/2 and EN 12811-1 When heavier construction is involved, the PE105 model provides the perfect support needed for working platforms. Advantages Suitable for construction, renovation, maintenance and construction job sites Variety of widths and lengths provides full flexibility for a range of scaffolding purposes Complete range of accessories to meet the needs of any customer in any situation Quick assembly improves efficiency and reduces labor costs Easy and safe assembly with a temporary aluminum guardrail provides fall protection during erection and dismantling Durability thanks to hot-dip galvanizing Technical Data Steel portal frame standard dimensions 105 cm (width) and 200 cm (height) Load capacity: PE 105-180: 300 daN/m² PE 105-180. 150 daN/m² Tubes for standards ø 48.3 mm with wall thickness 2.9 mm Tubes for ledgers and diagonals ø 38 mm with wall thickness 2.0 mm for bay lengths of 250 and 300 cm Hot dip galvanized steel
