Modular formwork LINEAR
lightweightmetalfor floor

modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
Add to favorites
Compare this product


Characteristics

Type
modular, lightweight
Material
metal
Applications
for floor

Description

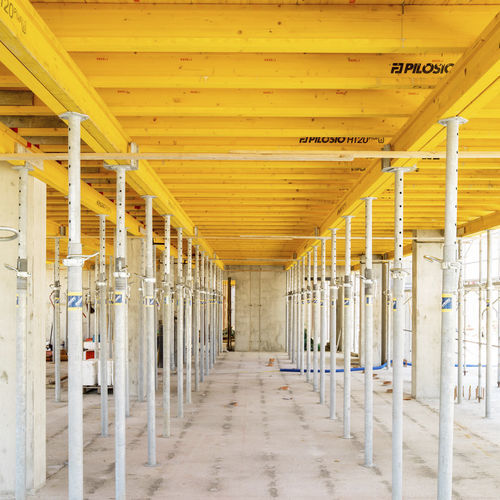

It is a semi-traditional system for the execution of slabs cast in place with high capacity props which support a primary and secondary frame of wood beams with protected heads. It is ideal for cast slabs in monolithic reinforced or lightened concrete and also for traditional slabs with thick beams. The counter casting surface, usually made by the company, can consist of “yellow” or blacks panels or various types of plywood 21 or 27 mm thick depending on the architectural requirements and degree of finishing required. The LINEAR formwork system consists of a few elements: -Props of various openings and capacities in accordance with EN 1065 -PL 20 wooden beams 330, 390, 490, 590 cm long protected at the head ends -4-way head -Intermediate head -Drop head -30 cm plate for lowered beams and super elevation -25 cm angle bar for slab lateral infilling
