Aluminum scaffolding K 105-180

steel

Product overview

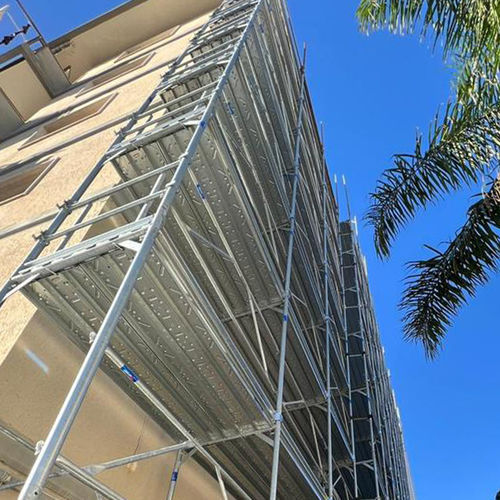

K 105-180 is a pin-frame (K type) steel portal-frame scaffolding designed for façade and vertical-surface works. The double prefabricated guardrail simplifies and speeds up assembly while maintaining on-site safety. Locking pins are welded to the frames to enable quick, tool-free connection of ledgers, braces and accessories.

Characteristics

• Steel portal-frame scaffolding optimized for façade operations with prefabricated double guardrails.
• Welded locking pins on the frames for secure, fast connection of ledgers, braces and accessories without special tools.

Advantages

• Modular frame design suitable for long, straight facades and large surface areas.
• Reduced number of components for logical, rapid erection and dismantling.
• Working platform load capacity up to 300 kg/m2 using 105 cm frames and 180 cm bays.
• Enhanced safety and stability provided by K-type double prefabricated guardrails.

Applications

• Residential construction
• Industrial construction
• Bridge construction
• Bridge maintenance
• Renovation & restoration
• Naval shipyards and maintenance

Technical specifications

• Portal frame standard dimensions: 105 cm width and 200 cm height.
• Standards (uprights): steel tubes ø 48.3 mm, wall thickness 2.9 mm.
• Ledgers and diagonals: steel tubes ø 26.9 mm, wall thickness 2.3 mm.
• K type configuration with double prefabricated guardrail.
• Temporary aluminium safety guardrail for fall protection during erection and dismantling.
• Hot-dip galvanised finish.
