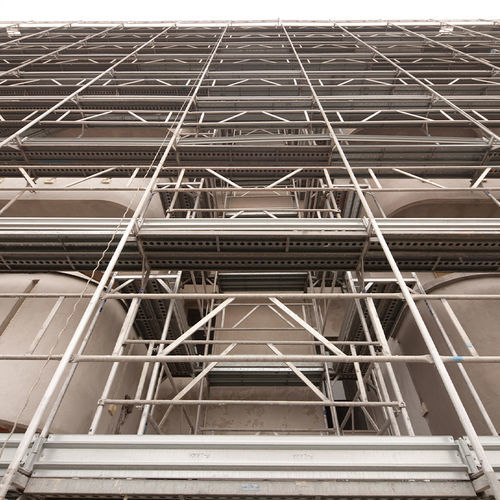

Aluminum scaffolding P.L.A.

on casters

Overview
A lightweight aluminum frame scaffolding system designed for short-term operations where rapid, simple and safe assembly and dismantling are required. All aluminum components are corrosion-resistant and need no special maintenance. Components are easy to handle, reducing assembly, modification and disassembly times. The reduced weight simplifies transport on limited-capacity vehicles and use in congested urban areas. The system can be configured as a mobile tower on wheels for situations demanding speed and high flexibility.

Characteristics

• Lightweight aluminum system tailored to short-term jobs with quick and safe assembly/disassembly.
• All P.L.A. aluminum elements are corrosion-resistant and low-maintenance.
• Light components facilitate handling and repositioning, shortening on-site operations.
• Reduced mass allows transport on limited-capacity trucks and delivery in city centres.
• Convertible for use as a mobile tower on wheels.

Advantages

• Fast and simple assembly due to ergonomic, lightweight components
• Stability ensured by double-braced guardrail
• Modular design with a compact set of components and a full range of accessories
• Easy conversion for mobile-tower applications

Applications

• Renovation & restoration, façade works and urban maintenance

Technical Data

• High-performance structural aluminum alloy
• Ø 48 mm aluminum tubes
• Frame connection by pin system
• Galvanized steel or aluminum planks
• Double structural guardrail (P.L.A.)
• Bay lengths: 0.80 m, 1.25 m, 2.00 m, 2.50 m
• Anchors supplied for each 20 m² of structure
• Class 2 maintenance capacity: 150 kg/m²

Specifications

• Material: high-performance structural aluminum alloy
• Tubes: Ø 48 mm aluminum tubes
• Connection: pin connection method
• Planks: galvanized steel or aluminum planks
• Guardrail: double structural guardrail (P.L.A.)
• Available bay lengths: 0.80 m, 1.25 m, 2.00 m, 2.50 m
• Anchoring: anchors provided per 20 m² of structure
• Load class: Class 2 maintenance — 150 kg/m²
