Fire-retardant protection system SECUR-BLIND
Add to favorites
Compare this product
Characteristics
- Other characteristics
- fire-retardant
Description
Characteristics
Advantages
Applications
Technical Data
Technical specifications

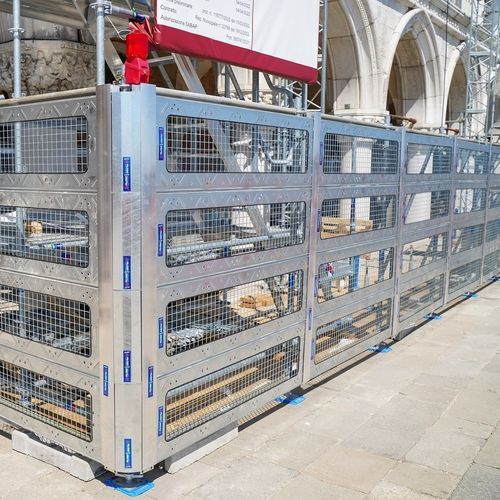

- SECUR-BLIND is a construction site protection system by Pilosio that attaches to scaffolding or tubular structures and replaces conventional site fence nets.
- It is composed of modified scaffold planks inserted vertically into two rails that are fixed to scaffold tubes φ48.3 mm with a galvanised pincer clamp.
- Can be used as a base site fence, as an environmental shield against dust/slag during special operations (e.g. asbestos abatement) and to limit access by unauthorized persons.
- Designed for an improved aesthetic impact on façades, suitable for sensitive contexts such as historical centres.
- Options available for airtight or airtight + soundproof configurations using gaskets and insulating sheets.
Advantages
- Adapts to diverse site layouts and phases
- Compatible with all common scaffolding systems
- Provides higher intrusion protection than building nets
- Quick, tool-free assembly and disassembly
- Efficient containment of dust and processing waste
- Airtight panels and sound-absorbing PL sheets available
- Custom panel dimensions, colours and graphics on request
Applications
- Residential construction
- High-rise buildings
- Industrial construction
- Bridge construction
- Bridge maintenance
- Renovation & restoration
- Oil & gas sites
- Shipyards and naval projects
- Event sites
- Excavation sites
Technical Data
- Panel material: galvanised steel in solid sheet or mesh; options: fire-retardant and sound-absorbing airtight panels
- Panel sizes: 50×100 cm, 50×150 cm, 50×180 cm, 50×200 cm, 50×250 cm
- Uprights: aluminium and airtight uprights, H = 200 cm
- Galvanised steel support foot for panel locking
- External adjustable galvanised steel corner pieces, H = 49 cm
- Entrance doors: single-leaf L = 100, 115, 150 cm or double-leaf L = 180, 200 cm (H = 200 cm)
- Galvanised pincer clamp for fixing to φ48.3 mm scaffold tubes
- Coloured panels, customised decorations and non-standard dimensions available on request
Technical specifications
- Panel material options: galvanised steel (solid sheet or mesh); fire-retardant and sound-absorbing airtight variants
- Available panel sizes: 50×100, 50×150, 50×180, 50×200, 50×250 cm
- Uprights: aluminium and airtight uprights, height 200 cm
- Support foot: galvanised steel foot for panel blocking
- Corner pieces: external, adjustable galvanised steel, height 49 cm
- Entrance doors: single-leaf L = 100, 115, 150 cm; double-leaf L = 180, 200 cm (H = 200 cm)
- Fixing: galvanised pincer clamp for φ48.3 mm scaffold tubes
- Options: gasket and insulating sheets for hermetic and soundproof solutions; coloured panels and customised decorations; panels in other dimensions on request
