Steel scaffolding T&C

Overview

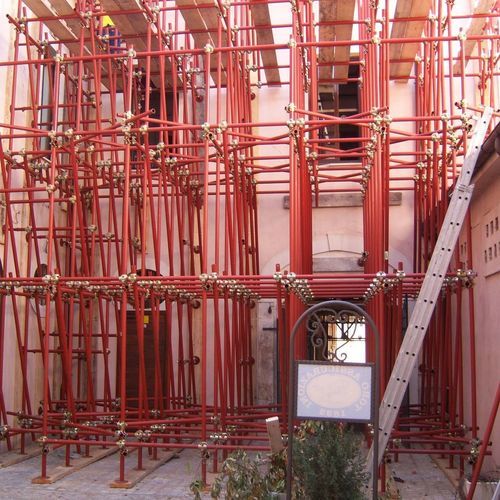

Traditional tube-and-coupler scaffolding system designed for versatile temporary structures and as a foundation for other Pilosio scaffolding systems.

Characteristics

• Classic, modular scaffolding composed of steel tubes and a wide range of couplers.
• With a limited set of base components, couplers allow tubes to be assembled into numerous configurations for complex structures.

Advantages

• Enables customized structural layouts: horizontal tubes and steel planks can be positioned at almost any height and vertical tubes at variable spacing following technical evaluation.
• Modularity suits complex and dynamic worksites.
• Usable as a stand-alone system or integrated with other Pilosio scaffolding solutions.
• Well suited for creating anchors and interconnections between scaffolds, towers or other structures.

Applications

• Residential construction
• Renovation and restoration projects
• Naval and shipyard work

Technical Data

• Steel tubes Ø 48.3 mm, wall thickness 3.2 mm
• Couplers available: orthogonal, swivel and draw couplers
• Surface treatment for tubes: industrial wet painting or hot-dip galvanizing
• Most labor-intensive type within the Pilosio scaffold range
