Metal scaffolding DYNAMO

Characteristics

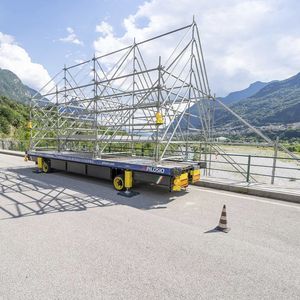

DYNAMO is a translatable ballasted trailer designed to carry any type or brand of scaffolding. It is intended for fast and safe maintenance, repair and cleaning operations on spans and widths of surfaces, intrados, bridges, viaducts, tunnels and other structures.

• Engineless design with a variable counterweight positioned beneath the chassis.

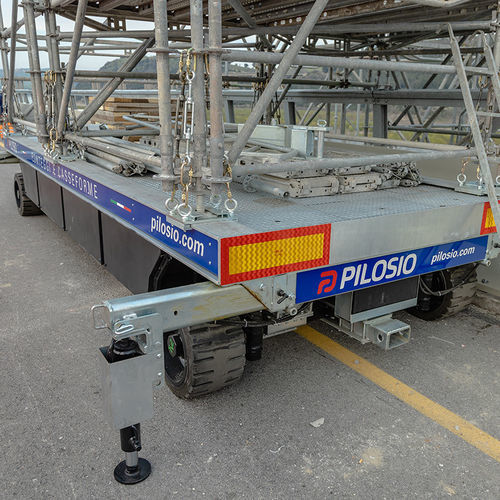

• Platform provided with side members and adjustable plates for secure attachment of scaffolding base plates.
• Parking brakes on all wheels; towable by any site vehicle including forklift or van.
• Double steering axle and double manoeuvring rudder for enhanced positioning and control.
• Available in two configurations: DYNAMO (manual version) and DYNAMO PLUS (hydraulic version on request).
• Customisation options available on request to meet site and customer requirements.

Advantages

• Compatible with any scaffold system thanks to adjustable base plate attachments.
• No need to anchor the scaffold to the structure.
• Easy to move, align and position relative to the work area.
• Quick to deploy and highly manoeuvrable during repositioning.
• Enables use of a single, progressive scaffolding structure instead of repeated assembly and dismantling.
• Lower operating cost since both versions are non-motorised.

Applications

• Bridge and viaduct maintenance
• Renovation and restoration works

Technical Data

• Available lengths: 5 m, 6 m, 7 m and 9.1 m
• Width: 2.27 m

Technical specifications

• Model: DYNAMO (manual); DYNAMO PLUS (hydraulic, on request)
• Type: Translatable ballasted trailer for scaffolding
• Engine: Engineless
• Counterweight: Variable, located beneath the chassis
• Platform: Side members and adjustable plates for base plate attachment
• Brakes: Parking brakes on all wheels
• Towing: Towable by any site vehicle (including forklift or van)
• Steering: Double steering axle and double manoeuvring rudder
• Dimensions available: 5 m, 6 m, 7 m, 9.1 m
• Width: 2.27 m
• Customisation: Available on request (Pilosio)
