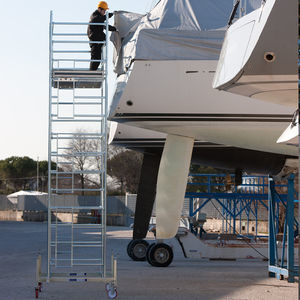

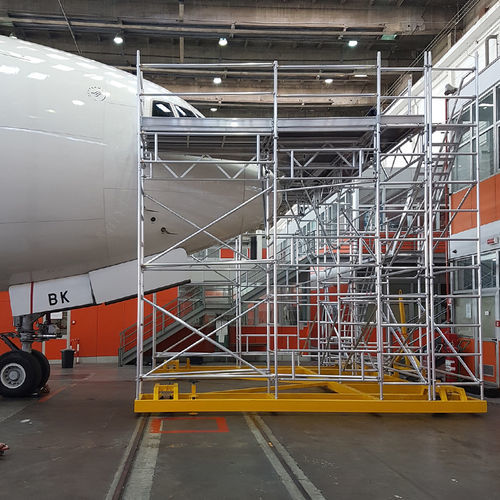

Aluminum scaffolding QUICK SYSTEM

mobile

Overview
The QS (Quick System) mobile tower system efficiently meets the need to simplify operations on site in total safety while optimizing turnaround times and labour costs. The Quick System is both a mobile work tower and a mobile scaffolding system that enables the creation of complex structures and special configurations with just a few components. It is made of high quality aluminum alloys tested and certified for elevated heights and provides long-lasting structural performance. The QS tower is a lightweight system, extremely fast and intuitive to assemble even by a single person thanks to the QUICK SYSTEM connection hooks designed exclusively by Pilosio. QS is suitable for general industrial maintenance, painting and plant engineering, whether indoors or outdoors.

Advantages

• Stable and extremely safe mobile tower system
• Quick and easy assembly thanks to special hooking system
• Can be assembled in a wide range of special configurations
• Extremely light structure
• Flexibility for the positioning of working platforms every 25 cm or 50 cm

Applications

• Residential constructions
• Skyscrapers
• Industrial construction
• Bridge construction
• Bridge maintenance
• Renovation & Restoration
• Oil & gas
• Naval
• Events

Technical Data

• Structural aluminum alloy
• Stringers at 25 cm or 50 cm steps allow flexibility in the positioning of work platforms
• Standards, transoms, ledgers, diagonals and guardrails made of structural aluminum tubes with a diameter of 48 mm
• Ladder integrated in the side frame
• Stairway options available
• Fixed, swivel or adjustable wheels certified according to the European standard EN 1004
• Three ladder widths: 80 cm, 110 cm, 140 cm and three lengths: 180 cm, 240 cm, 300 cm to create a variety of configurations and special structures
• Telescopic guardrail for assembly to ensure maximum safety during set up without the use of restraining PPE

Documents
Pilosio Quick System Catalogue (ENG)

Caractéristiques / spécifications techniques

• Structural aluminum alloy
• Stringers at 25 cm or 50 cm steps for platform positioning flexibility
• Standards, transoms, ledgers, diagonals and guardrails in 48 mm diameter structural aluminum tubes
• Integrated ladder in side frame
• Available stairway options
• Fixed, swivel or adjustable wheels certified to EN 1004
• Ladder widths: 80 cm, 110 cm, 140 cm
• Ladder lengths: 180 cm, 240 cm, 300 cm
• Telescopic guardrail for safe assembly without restraining PPE
