Wood shoring BOX SICURO

steel

Overview
BOX SICURO is a lightweight, fast and economical trench shoring system, delivered pre-assembled and suitable for trench works on soils of good consistency. European standard EN 13331-1/2 and Italian legislative decree D.lgs 81/2008 require that excavations deeper than 1.50 m be supported to prevent collapse of trench walls and protect workers.

Characteristics

• Quick and economical, supplied already assembled; intended for trench works on soils of good consistency.
• The BOX SICURO lightweight shoring system is engineered to ensure safety for trench works up to a maximum depth of 320 cm on soils of good consistency.
• Base module consists of a pair of steel panels 300 cm (length) × 200 cm (height) braced by telescopic spacers for trench widths from 75 cm to 215 cm.
• Can be combined with elevation panels of 60 cm and 120 cm to reach greater depths.
• Delivered assembled on site or installed using medium-capacity lifting equipment such as backhoe loaders and mini-excavators.
• Designed to withstand a pressure up to 22.50 kN/m², guaranteed up to the maximum opening of 215 cm.

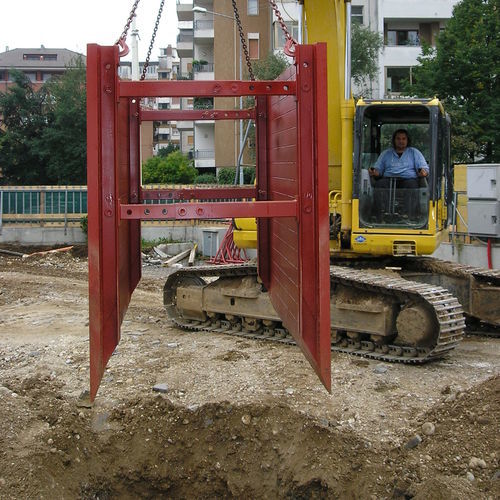

• Simple and fast work sequence: assemble BOX SICURO above ground, excavate to the required depth, position BOX SICURO with a single lift from the excavator and proceed with bottom works.

Advantages

• Ease of use
• Lightweight
• High safety standards

Applications

• Excavations (trench wall protection and operator safety during trench works)

Technical specifications

• Base panel: 300 × 200 cm.
• Base module weight 300 × 200 (width 75/95): 941 kg.
• Elevation elements available: 300 × 60 cm and 300 × 120 cm.
• Depths indicated in the source: up to 320 cm (mentioned in characteristics) and 3.50 m (reported in technical specification); both indications are reproduced as present in the original page.
• Adjustable trench width: from 0.75 m to 2.15 m (telescopic spacers).
• Load/pressure: designed to withstand up to 22.50 kN/m²; maximum guaranteed opening 215 cm.
