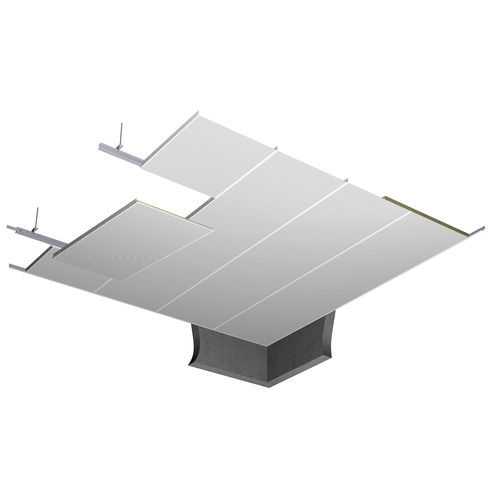

Galvanized steel suspended ceiling HORUS
panelfor officefor clean rooms

galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
Add to favorites
Compare this product


Characteristics

Material
galvanized steel
Type
panel
Room/use
for office, for clean rooms, for entryways
Location
indoor
Technical characteristics
acoustic, insulating, A2-s1, d0
Aesthetics
perforated
Ecological characteristics
VOC-free, sustainable, recyclable
Width

300 mm, 400 mm, 600 mm
(12 in, 16 in, 24 in)

Length

Min.: 900 mm
(35 in)

Max.: 2,500 mm
(98 in)

Thickness

Min.: 0.6 mm
(0.024 in)

Max.: 0.8 mm
(0.031 in)

Description

Installation: grid with an offset edge to absorb alignment gaps with the wall Aesthetics: celling with a monolithic aspect for framed installations Acoustics: high degree of correction, absorption factor αw up to 1 Plenum ventilation: suitable for hospitals Related systems : - Hook-on panel on concealed grid system HORUS [PLAFOMETAL-CC-310] - Hook-on panel on concealed grid system HORUS [PLAFOMETAL-SC-210] ACOUSTIC ABSORPTION αw up to 0.85 with the ALPHA range αw up to 1 with the ALPHA PLUS range Check out our video "Acoustic metal ceilings" in our Learning Center. ACOUSTIC FILLING ALPHA offer: black acoustic fleece bonded on the back of perforated ceilings. ALPHA PLUS offer: two options of acoustic inlays are possible. The surfaced insulating wool for optimal performances or encapsulated insulating wool to avoid fibers. Acoustic performances of ceilings are guaranteed for products defined, controlled and entirely delivered by Plafometal. LIGHT REFLEXION Up to 87%. FIRE REACTION According to EN 13501-1 : Euroclass A1 for the prepainted non-perforated Euroclass A1 for the prepainted in the ALPHA range Euroclass A2-s1, d0 for non-perforated powder post-painted Euroclass A2-s1, d0 for powder post-painted in the ALPHA range Euroclass A2-s1, d0 for the product in the ALPHA PLUS range CHEMICAL RESISTANCE Our metal ceilings and wall panels have been tested with three types of disinfection chemicals recommended by the World Health Organization against the main viruses, including COVID-19: sodium hypochlorite 2.5%, hydrogen peroxide 6% and ethanol 70%.

Catalogs
