Galvanized steel suspended ceiling ORIAL
tileacousticflame-retardant

galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
galvanized steel suspended ceiling
Add to favorites
Compare this product


Characteristics

Material
galvanized steel
Configuration
tile
Technical characteristics
acoustic, flame-retardant
Aesthetics
perforated
Thickness

Min.: 0.6 mm (0 in)

Max.: 0.8 mm (0 in)

Width

300 mm, 400 mm, 600 mm (12 in)

Length

Min.: 800 mm (31 in)

Max.: 2,500 mm (98 in)

Description

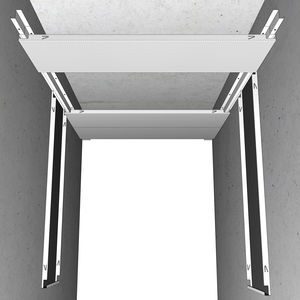

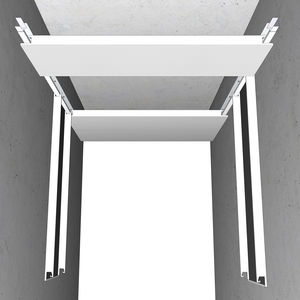

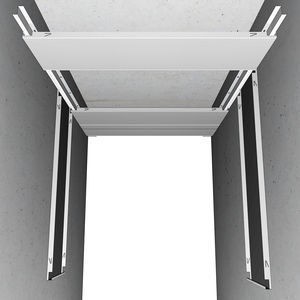

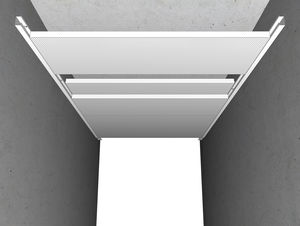

Product Benefits Opening: swing down on both sides Acoustics: high degree of correction, absorption factor αw up to 1 Installation: grid with an offset edge to absorb alignment gaps with the wall Plenum ventilation: open hollow joint suitable for hospitals Related system : Swing-down panel system on both sides ORIAL PLAFOMETAL [PLAFOMETAL-CC-110] Caracteristics & Performance ACOUSTIC ABSORPTION αw up to 0.85 with the ALPHA range αw up to 1 with the ALPHA PLUS range Check out our video "Acoustic metal ceilings" in our Learning Center. ACOUSTIC FILLING ALPHA offer: black acoustic fleece bonded on the back of perforated ceilings. ALPHA PLUS offer: two options of acoustic inlays are possible. The surfaced insulating wool for optimal performances or encapsulated insulating wool to avoid fibers. Acoustic performances of ceilings are guaranteed for products defined, controled and entirely delivered by Plafometal. LIGHT REFLEXION Up to 87%. FIRE REACTION According to EN 13501-1 : Euroclass A1 for the prepainted non-perforated Euroclass A1 for the prepainted in the ALPHA range Euroclass A2-s1, d0 for non-perforated powder post-painted Euroclass A2-s1, d0 for powder post-painted in the ALPHA range Euroclass A2-s1, d0 for the product in the ALPHA PLUS range Regulations ENVIRONMENT AND HEALTH Our ceilings can be fully recycled over an indefinite period of time. They are sustainable, easy to maintain, produce no dust, particles or vapor, are inert and odor-free. They do not promote microbial growth and do not emit any VOCs or formaldehyde. CE MARKING DoP No.: 0007-200
