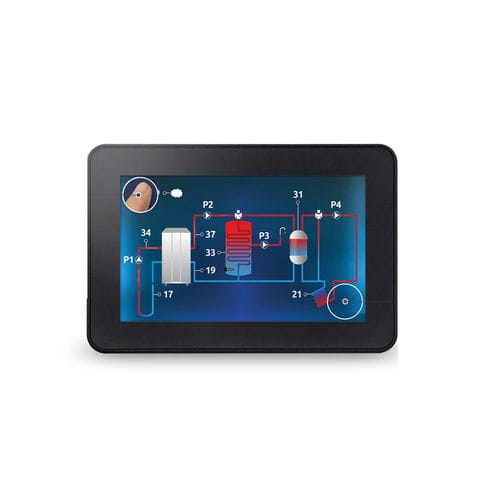

Wall-mounted heating controller ECOTRONIC100

for heating and coolingfor heat pump

Regulator for ground heat pumps. WiFi and Modbus communication. Split / Monoblok operation. OEM Expansion valves support. HYBRID with the ventilation, solar and boiler. Module Controls: the lower heat source, the central heating and hot utility water circuit, the compressor operation, the DHW tank heater and the bivalent source, enables the production of chilled water (cooling mode), supports radiator, floor and fan coil units with cooling function. Functions The regulator: through pressure and temperature measurements, controls processes in ground and air heat pumps with simultaneous control of the expansion valve in order to obtain the maximum COP and SCOP count for the season, supports pump mode for heating and cooling rooms, ensures: measurement of return and flow temperature, pressure measurement of compressed and decompressed working medium, operation of pressure switches, notification of end of compressor life, compressor protection, support for bivalent heat sources in 3 modes, has a BURST mode – single and express DHW charging, display of critical alarms for the compressor, adaptation to each thermostat, weather control, time schedules, frost protection, hot water disinfection, provides ground regeneration function for heat source, software update, cooperation with the ecoNET300 internet module and the ecoNET.apk and ecoNET.app mobile application via WiFi allows to control the on-line heat pump. Accessories ecoVALVETRONIC Controls the operation of a bipolar/unipolar expansion valve and is designed to maintain constant overheat/subcooling of the refrigerant during compressor operation.
