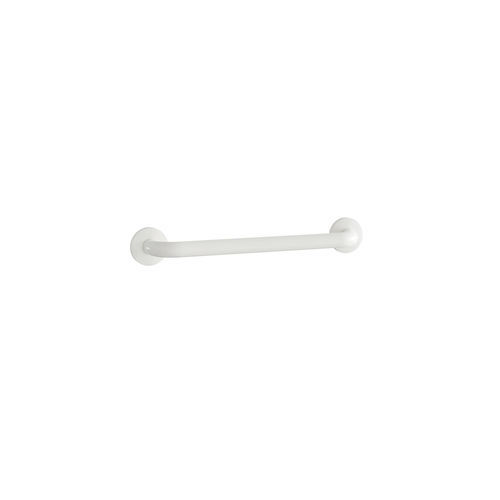

Polyester grab bar XG09UAS01

stainless steelepoxy304 stainless steel

Description
Linear safety grab bar manufactured from seamless AISI 409 steel tube with surface finish in epoxy-polyester powder coating (80 µm).

Main features

• Tube body, thickness 1 mm
• External handle diameter: 32 mm
• Flange diameter: 78 mm
• External finish: epoxy-polyester powder - 80 µm
• Mounting flange in stainless steel AISI 304
• Flange cover in stainless steel AISI 304 to conceal screws
• Product supplied in parts; requires assembly prior to installation

Colors / Finishes

• WA - Linen White (Pantone: 705; RAL: 9016; NCS: 0510-R)
• DM - Sepia Black (RAL: 9005)

Materials

• Tube: AISI 409 steel
• Flange and flange cover: AISI 304 stainless steel
• Stainless steel available in Matte and Raw finishes

Variants and dimensions (code: AxBxC mm; center distance A1 mm; weight; vertical load capacity)
G09UAS01: 299x82x78.7; A1 220; Weight 0.66 kg; Vertical load capacity 150 kg
G09UAS02: 379x82x78.7; A1 300; Weight 0.76 kg; Vertical load capacity 150 kg
G09UAS03: 449x82x78.7; A1 370; Weight 0.90 kg; Vertical load capacity 150 kg
G09UAS04: 529x82x78.7; A1 450; Weight 1.00 kg; Vertical load capacity 150 kg
G09UAS05: 679x82x78.7; A1 600; Weight 1.36 kg; Vertical load capacity 150 kg
G09UAS06: 799x82x78.7; A1 720; Weight 1.60 kg; Vertical load capacity 150 kg
G09UAS07: 979x82x78.7; A1 900; Weight 1.96 kg; Vertical load capacity 150 kg
G09UAS08: 1279x82x78.7; A1 1200; Weight 2.56 kg; Vertical load capacity 150 kg

Note
The grab bar is supplied with components unassembled and requires assembly by the user or installer prior to installation.

Characteristics / Technical specifications

• Seamless tube in AISI 409 steel
• Tube thickness: 1 mm
• Handle external diameter: 32 mm
• Flange diameter: 78 mm
• Finish: epoxy-polyester powder coating, 80 µm
• Flange and flange cover: AISI 304 stainless steel
• Product available in several lengths/variants (see codes G09UAS01 ÷ G09UAS08)
• Indicated vertical load capacity: 150 kg
