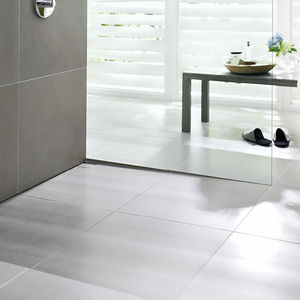

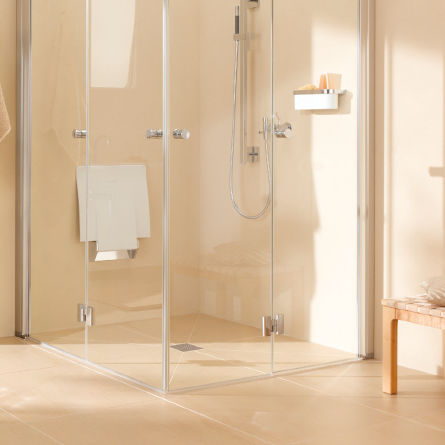

The Poresta® BF/BF KMK floor-level shower system has been tried and tested for more than a decade. This shower solution is available in various sizes and shapes. It can be tiled with different patterns to fit perfectly and add more space to the bathroom environment.
Waterproof, coated, ready-to-tile hard foam shower system with integrated gradient of approx. 2.0-2.5%
Centred or offset, integrated and sealed drain plate with vertical or horizontal drain
Poresta® BF/BF KMK horizontal drain: flow rate 42 l/min, standard DN 50 connection
Poresta® BF/BF KMK vertical drain: flow rate 60 l/min, standard DN 50 connection
Water trap height 50 mm based on DIN EN 274
Depending on the geometry and installation height, the shower system can be trimmed on-site by the installer up to 50 mm on all sides, taking into account the specific usage (splash protection, area of movement, etc.)
Movable grate frame
