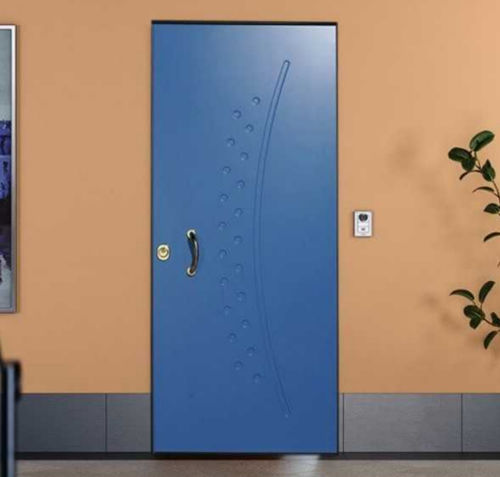

Entry door PANTOGRAPH
steelswingcontemporary

entry door
entry door
entry door
Add to favorites
Compare this product


Characteristics

Type
entry
Material
steel
Opening system
swing
Style
contemporary
Glazing
without glazing
Configuration
1 leaf
Security level
armored
Technical characteristics
security, acoustic, automatic, thermally-insulated
Color
customizable color
Other characteristics
lacquered
Width

93 cm, 98 cm, 103 cm
(36.61 in, 38.58 in, 40.55 in)

Height

217 cm
(85.43 in)

Description

Aquality product guaranteed by over 45 years of expérience in the sector. CLASS 3 certification according to the UNI ENV 1627:2000, UNI ENV 1628:2000, UNI ENV 1629:2000 standards. A model of armoured doors that optimizes the value for money, with the possibility of customizing it with a vast availability of smooth and machined coatings. The Counter frame of the armoured doors is manufactured of a 20/10-thick galvanized Steel sheet, to wall up with 8 strong fïxing brackets; complété with spacers and connecting brackets for adjustment. The armoured door frame is manufactured of 15/10-thick folded Steel, appropriately shaped to house the extruded rubber seal in the mulberry powder-coated stop. ARMOURED DOOR SOUNDPROOFED pantographed exterior and lacquered blue soundproofed and with magnetic contact for alarm. The armoured front door is manufactured of two Steel structures with a 12/10-thickness, suitably welded so that it can form a non-deformable sandwich. Additional lock level reinforcement with 30/10-thick manganèse Steel plate: Reinforced hinges and changeover switches with 30/10 Steel plate. The security lock on the double-bitted armoured door has four bolts plus hitch, and four high-security tums. The two changeover switches of the armoured door are piston-shaped and in chromed Steel, placed above and below the lock. Beaks from the side of the hinges, the armoured front door is fïtted into the jamb for additional anti-tear security. Mobile sill to avoid drafts of cold air, here is a convenient accessory included in the supply that allows to further soundproof the armored door
