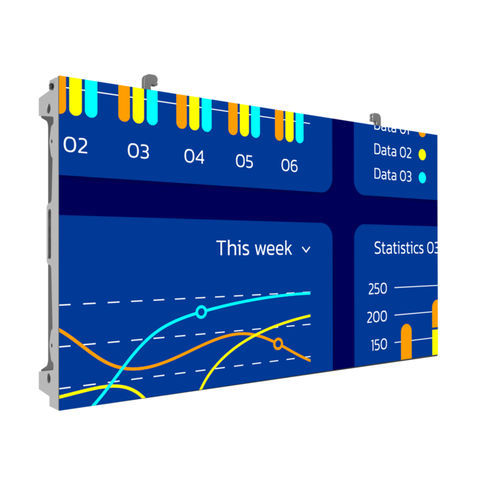

Wall-mounted display panel 6000 SERIES

indooradvertisingLED

Create any size 16:9 unique display or even a crisp 32:9 panoramic view, which defies traditional conformation by assembling an intriguing modular pattern. Perfect viewing experience for presentations and corporate branding content. Picture/Display Brightness before calibration - 750 nits Brightness after calibration - 650 nits Colour temperature default - 6500±500 K Colour temperature adjust range - 4000~9500 K (by software) Viewing angle (horizontal) - 160 Viewing angle (vertical) - 160 Contrast ratio (typical) - 3800:1 Calibration (brightness/colour) - Supported Refresh rate (Hz) - 1920~3840 Frame frequency (Hz) - 50 & 60 Aspect ratio - 16:9 Picture enhancement - Dynamic contrast enhancement Wide colour gamut display Placement - Landscape Usage - 24/7 hrs, Indoor Brightness uniformity - >=97% Convenience Signal control loop through - RJ45 Ease of installation - Guide pins Light weight Power loop through - For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less Operating conditions Temperature range (operation) - -20~45 Temperature range (storage) - -20~50 Humidity range (operation)[RH] - 10~80% Humidity range (storage) [RH] - 10~85% Power Input voltage - AC100~240 V (50 and 60 Hz) Black screen power cons. (W) - <16 Max. power cons. AC (W) - <124 Max. power cons. BC (W) - <168 Typical power cons. (W) - <41.4 Miscellaneous Warranty - 2 years Regulatory approvals - RoHS EN61000-3-2 EN61000-3-3 IEC/UL60950 IEC/UL62368 IEC62471 EN55032 EN55035 EMC
