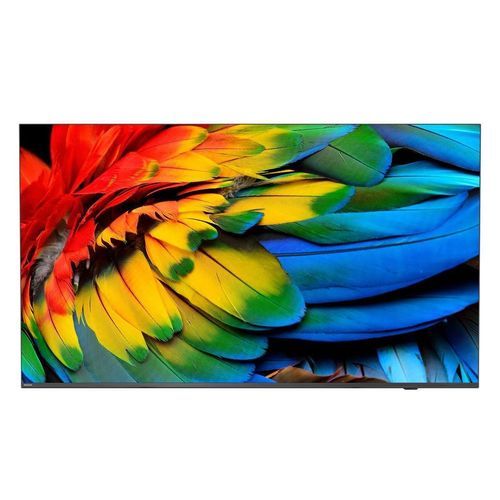

Smart TV 65HFL6214U/12

Ultra HDframeLED

Overview
Philips MediaSuite 65HFL6214U/12 is a 65" 4K Ultra HD hospitality TV designed for professional installations. It integrates Android TV, Chromecast built-in and hotel-specific management features for scalable deployment in guest rooms and public areas.

General

• Size: 65" (164 cm)
• Series: MediaSuite TV 6000 Series

Design

• Material: Aluminium frame
• Colour: Anthracite Grey

Audio

• Sound output power: 20 W
• Bathroom speaker out: 1.5 W Mono 8 ohm
• Sound features: DTS‑HD, Dolby Atmos compatible, Dolby MS12D, AC‑4, DTS Studio Sound
• Speakers: 2.0, down firing

Accessories

• Optional: Easy RC 22AV1601B/12; External Clock 22AV1860A/12; DOCSIS Cable Modem 22AV1970A; Setup RC 22AV9574A/12; PPDS VESA table stand
• Included: Hygienic RC 22AV2226A; 2x AA batteries; Power Cord; Warranty Leaflet; Legal and Safety brochure

Wireless Connectivity

• Wireless LAN: 802.11ac
• Wi‑Fi Direct

Tuner / Reception / Transmission

• IP playback: Multicast, Unicast, HLS, OTT app channels
• Analogue TV: PAL
• Digital TV: DVB‑T/T2/C; HEVC UHD

Connectivity (bottom / side)

• USB 2 (bottom): USB 2.0
• USB 1 (side): USB 3.0
• HDMI 1 (side): HDMI 2.0 with HDCP 2.2
• HDMI 2 / HDMI 3 (bottom): HDMI 2.0 with HDCP 2.2
• Ethernet (LAN): RJ‑45
• External control: RJ‑48 (IR‑In/Out, Serial Xpress)
• Antenna: IEC‑75
• Bathroom speaker out (bottom): Mini‑Jack
• Headphone out (side): Mini‑Jack
• Common Interface Slot: CI+ 1.3.2
• External power: 12 V, max 1.5 A

Power

• Standby power consumption: <0.3 W
• EU energy label power: 86 W (Energy class F)
• EPREL registration number: 936086
• Mains power: AC 220–240 V, 50–60 Hz
• Ambient temperature: 0 °C to 40 °C
• Power saving features: Eco mode; Auto switch‑off timer; Light sensor

Dimensions

• Product weight: 23.7 kg
• Set height: 836 mm
• Set width: 1451 mm
• Set depth: 68/83 mm
• Wall‑mount compatible: 300 x 300 mm, M6

Picture / Display

• Display: 4K Ultra HD LED
• Panel resolution: 3840 x 2160p
• Diagonal screen size: 65 inch (164 cm)
• Brightness: 400 cd/m²

Supported Display Resolution

• Tuner: up to 1920 x 1080p@60 Hz; T2 HEVC up to 3840 x 2160@60 Hz
• USB, LAN: HEVC up to 3840 x 2160@60 Hz; others up to 1920 x 1080p@60 Hz
• HDMI: up to 3840 x 2160p@60 Hz

Android TV

• OS: Android TV™ 9
• Memory (Flash): 16 GB*
• Pre‑installed apps: Netflix*; YouTube; Google Play Store*; Google Play Movies; Google Play Games; YouTube Music

Hospitality Features

• Power control: Quick Start Mode; Auto Power ON/OFF
• Revenue generation: MyChoice
• Branding: Customisable Home Screen and Welcome App; Location Name; CMND&Create; Custom Dashboard
• Guest services: CMND&Check‑In (Guest Name, Guest Language, Messages, Bill on TV, Express Checkout)
• Sharing: Chromecast Ultra built‑in; Secure Sharing; Network‑managed Sharing
• Control & management: AppControl; JEDI Native Android TV Control; JSON API (JAPIT); Serial Xpress Protocol; Crestron Connected; Remote management over IP/RF; TV group management
• Convenience: Google Assistant*; Google Account Login; >40 supported menu languages; Clock in OFF mode; Wake Up Alarm; Sleep Timer
• Hotel mode: Volume limitation; Installation Menu Lock; Menu lock; Joystick Control Lock; Prison mode
• Remote control: Low‑battery detection; RC battery door lock

Multimedia

• Subtitle formats: SRT; SMI; TXT
• Audio formats: MP3; AAC; WAV; WMA; WMA‑PRO
• Video playback: H.264/MPEG4 AVC; MPEG1; MPEG2; MPEG4; WMV9/VC1; HEVC; Containers: AVI, MKV; VP9
• Picture formats: JPG; PNG; BMP; GIF

Connectivity Enhancements

• EasyLink (HDMI‑CEC): One touch play; System standby; RC pass through; System audio control
• HDMI features: ARC; Auto input selection
• RJ48: IR‑In/Out; Serial Xpress interface

Availability
Philips MediaSuite 6214, 6114, 5214 and 5114, Philips Hospitality TV 4518, and Philips Business TVs are available for sale only at distributors and local PPDS Partners.

Specifications / technical details

• Model: MediaSuite TV 6000 Series
• Product code / name on page: 65HFL6214U/12
• Display: 4K Ultra HD LED, 3840 x 2160p, 65" (164 cm)
• Brightness: 400 cd/m²
• Audio power: 20 W; Speakers: 2.0 down firing
• Wireless LAN: 802.11ac; Wi‑Fi Direct
• IP playback: Multicast, Unicast, HLS, OTT App Channels
• Digital TV: DVB‑T/T2/C; HEVC UHD
• HDMI: HDMI 2.0 with HDCP 2.2 (multiple ports)
• USB: USB 2.0 (bottom), USB 3.0 (side)
• Ethernet: RJ‑45
• External control: RJ‑48 (IR In/Out, Serial Xpress)
• External power input: 12 V, max 1.5 A
• Power: AC 220–240 V, 50–60 Hz; Standby <0.3 W; EU energy power 86 W; Energy class F; EPREL 936086
• Operating ambient temp: 0 °C to 40 °C
• Weight: 23.7 kg; Dimensions: W 1451 mm × H 836 mm × D 68/83 mm
• Wall mount: 300 × 300 mm, M6
• Android TV: Android TV™ 9; 16 GB flash; preinstalled Google Play & streaming apps
• Hospitality & management: CMND suite, AppControl, JEDI, Crestron, JAPIT, remote management over IP/RF
• Multimedia support: subtitles (SRT, SMI, TXT), audio (MP3, AAC, WAV, WMA, WMA‑PRO), video (H.264/AVC, HEVC, MPEG family, WMV9/VC1, VP9), images (JPG, PNG, BMP, GIF)
• Included items: Hygienic RC 22AV2226A, 2x AA batteries, Power Cord, Warranty Leaflet, Legal and Safety brochure
