Dual-flow ventilation unit 160 MINI ERP - VMC DOUBLE-FLUX DÉCENTRALISÉE

hybridresidentialcommercial

Overview

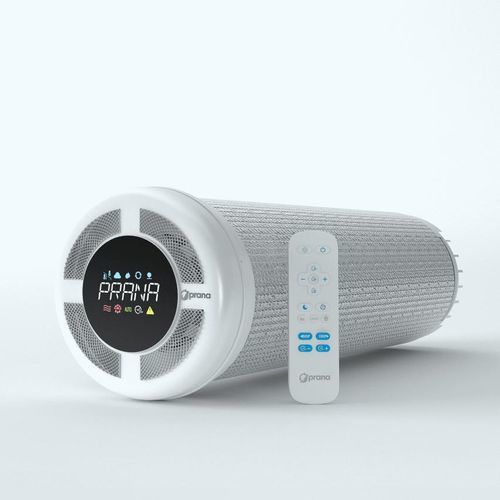

Decentralized dual‑flow mechanical ventilation unit PRANA 160 Mini. Available in 3 versions: Standard, ERP (recommended) and ERP PRO. Decentralized solution enabling simultaneous supply and exhaust air exchange, fitted with a copper heat exchanger and fast installation (1–2 hours depending on site). Accessories available: G4+CARBON filters, non‑return damper, wind cover, decorative rings (plastic or stainless steel), etc.

Versions / main options

• Standard: basic version ensuring air exchange, high‑performance copper heat exchanger (no additional sensors).
• ERP (recommended): includes humidity sensor and connectivity (Wi‑Fi / Bluetooth), display and AUTO / AUTO+ modes; option shown +97.92 €.
• ERP PRO: top‑range version with additional sensors (4 temperature sensors, CO2‑equivalent sensor, TVOC sensor), advanced monitoring and automatic adjustment functions; option shown +172.80 €.
• Available lengths: 350 mm (default), 440 mm, CUSTOM option (between 350 and 440 mm) available.
• Front cover color: white default; CUSTOM color option available (+280.50 € if selected).
• Front decorative ring: PVC (default) or Stainless steel (+41.40 €).
• Filters: 1 x G4+CARBON supplied by default; 3‑pack option available (+36.00 €).
• Non‑return damper: option (+19.80 €).
• Wind cover (stainless steel): option recommended for high installations or windy sites (prices shown by thickness option +43.92 € / +52.20 € / +61.20 €).

Comparison of the 3 versions (excerpt from comparison table)
Functions included | STANDARD | ERP | ERP PRO
Separate control of supply and extract airflow | ✓ | ✓ | ✓
Date & time display | ✓ | ✓ | ✓
Sleep timer | ✓ | ✓ | ✓
Bluetooth, Wi‑Fi connection | ✓ | ✓ | ✓
"Mini‑heating" mode | ✓ | ✓ | ✓
"Winter" mode | ✓ | ✓ | ✓
Auto‑diagnosis filter status | ✗ | ✓ | ✓
Humidity sensor | ✗ | ✓ | ✓
Atmospheric pressure sensor | ✗ | ✓ | ✓
"Auto" and "Auto+" modes | ✗ | ✓ | ✓
Outgoing air temperature sensor before recovery | ✗ | ✓ | ✓
Incoming air temperature sensor after recovery | ✓ | ✗ | ✓
CO2‑equivalent sensor | ✗ | ✗ | ✓
TVOC air quality sensor | ✗ | ✗ | ✓
Thermal efficiency display | ✗ | ✗ | ✓

Functional characteristics and usage

• Applications: apartments, houses, offices, schools, restaurants, gyms, beauty salons, shopping centers.
• Installation: decentralized, no major renovation required; quick installation (1–2 hours depending on site).
• Heat exchanger: copper, high thermal efficiency (efficiency up to 85% indicated on some modules).
• Acoustic comfort: sound level measured at 3 m: 8 – 44 dBA (depending on operating point).
• Filtration: designed to capture dust particles and partially reduce odors (G4+CARBON filters available).
• Certifications and compliance: compliant with applicable European directives on EMC, machinery, Ecodesign (ERP), low voltage, radio equipment, RoHS.

Available documents (listed on the page)

• Catalogue Prana France (Catalogue‑Prana‑France‑2024.pdf)
• PRANA technical sheet (PRANA‑Fiche‑Technique‑2024‑04‑21.pdf)
• PRANA installation manual (PRANA‑Notice‑dInstallation‑2024‑01‑26.pdf)

Accessories & complements

• G4+CARBON filter (single or pack of 3)
• Non‑return damper (plastic ring with membrane)
• Wind cover (stainless steel) — recommended for high installations or windy sites
• Front decorative rings (plastic or stainless steel)

Pricing notes

• Example option prices shown on the page: ERP (+97.92 €), ERP PRO (+172.80 €), custom color (+280.50 €), stainless ring (+41.40 €), wind cover options (+43.92 € / +52.20 € / +61.20 € depending on choice).
• Page also states: "Starting from 870.40 € excl. VAT depending on version".

Technical specifications

• Airflow exchanged: 5 – 52 m3/h
• Electrical consumption: 3.2 – 16.4 W
• Efficiency: up to 85% (value may vary by module)
• Energy efficiency rating: C
• Quality certificate: European CE quality certificate (mentioned on the page)
• Heat exchanger material: copper
• Mounting hole diameter: 162 mm
• Module length: 350 mm (default; other length 440 mm and CUSTOM option possible)
• Weight: 3.6 kg
• Dimensions: 67 × 20 × 20 cm
