Mobile glass roof GLASS SERIES

fixedslidingaluminum

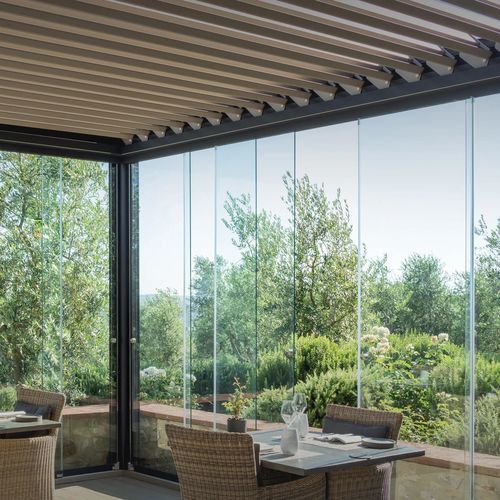

Slide Glass 60 is the track-mounted sliding glass system made of tempered glass ground to a polished edge and fitted with a 2- to 8-way aluminium surrounding profile, with a customisable colour. The panels are 10 or 12 millimetres thick and can be up to 10.4 x 3 metres wide. Aesthetics are at peak level with the tracks designed to be concealed in the pergola structure and transparent polycarbonate seals that even increase resistance, tested by the Istituto Giordano for air permeability (Class 2), water tightness (Class 1A) and wind resistance (Class A1). Locks, handle and mechanisms of your choosing complete the customisation.
TECHNICAL FEATURES
- Sliding closures on rails made of 10-12 mm thick tempered cut glass polished edge
- Dimensions: L max 1040 cm, H max 300 cm
- Aluminium perimeter profiles and rails
- Water-and air-tight gasket
- Silent movement thanks to Delrin-coated bearings

For shading the pergolas and outdoor spaces, the Fix Glass glazing represent a functional and design-oriented solution. As the name suggests, the glazing is fixed in tempered glass ground to a polished edge and complemented by a thin aluminium perimeter profile that can be customised in terms of the shades. The view of the outdoors is always perfect, thanks to the 10×3 metre wide panels, which can be placed side-by-side with transparent polycarbonate seals that increase protection against water, air and dust infiltration.
TECHNICAL FEATURES
- Fixed panels made of 10-12 mm thick tempered cut glass polished edge
- Dimensions: L max 1000 cm, H max 300 cm
- Aluminium perimeter profiles

Practical and refined, Door Glass is the hinged door made of toughened glass grounded and without perimeter profiles. The minimalist design is combined with a selection of standard accessories in satin-finish stainless steel. The door, which can be up to 1×3 metres wide, can be configured with a choice of single or double leaf solutions, with or without a fixed panel.
TECHNICAL FEATURES
- Hinged door in tempered cut glass polished edge without perimeter profiles, 10-12 mm thick
- Dimensions: L max 100 cm, H max 300 cm
- Different configurations are possible for dimensions up to L max 200 cm (single/ double door/with fixed panel)
