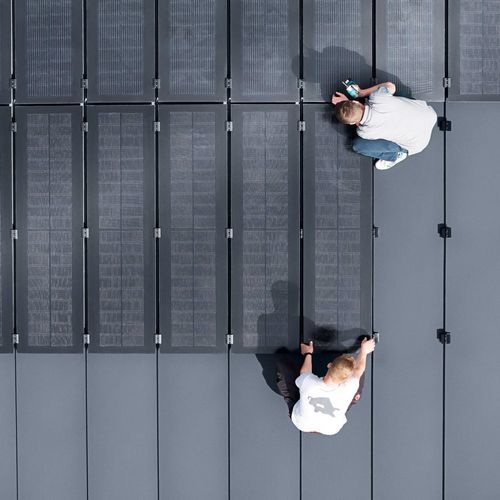

Glass-glass PV panel PREFALZ SERIES

anti-slipfor roofblack

Presentation These glass/glass photovoltaic modules have been developed specifically for PREFALZ standing-seam roofs and integrate with the characteristic appearance of the standing seams. The system pairs double-glass PV modules with integrated fastenings (clip + module clamp) enabling installation parallel to the roof with a minimal mounting height of 70 mm.

Benefits

• Aesthetics: parallel to the roof, preserves the look of the standing seams and integrates harmoniously with PREFALZ roofs.
• Durability: robust glass/glass module resistant to moisture, hail and snow loads.
• High efficiency: TOPCon cells deliver approximately 10% more power, including improved performance in diffuse light.
• No penetrating the roof covering: attachment to standing seams via special clamps transfers loads without damaging the covering.
• 2-in-1 fixation: clip and module clamp combined in a single product for simplified assembly and fewer components.
• Suitable for new or existing PREFALZ roofs.
• Produced and developed in Austria (PREFA industrial quality).

Cell technology TOPCon photovoltaic cells: improved lifetime and heat dissipation, higher efficiency (~10% vs PERC), better performance in diffuse light.

Delivery contents

• PREFALZ solar modules (glass/glass modules, cabled with MC4 connectors)
• Central and end clamps (PREFALZ 500/650 central/end fixings)
• Anti-slip safety devices for modules
• Cable kit with all required inputs and outputs
• Various services available (e.g. installation of the PV system)

Module structure

• Installation height: 70 mm
• Front solar glass: 3.2 mm
• Encapsulation materials
• Photovoltaic cell type: TOPCon
• Encapsulation materials
• Rear glass: 3.2 mm
• Junction box, MC4 male/female connector with solar cable and protective sheath

Available in two sizes (useful widths) PREFALZ 500: Dimensions: 2000 x 408 mm
Power: 150 Wp / piece
PREFALZ 650: Dimensions: 2000 x 558 mm
Power: 150 Wp / piece

Warranty Performance warranty 25 years (guaranteed minimum 85% of nominal power after 25 years). Product and substructure warranty according to PREFA conditions (duration and coverage specified by PREFA).

Colours Modules available in black. Module fastenings supplied in matching black anodized finish. PREFALZ aluminium strips for the roof covering are available in PREFA standard colours.

Technical information (key parameters)
Rated power: 150 Wp (for both useful widths)
Area required: 5.44 m²/kWp (PREFALZ 500); 7.44 m²/kWp (PREFALZ 650)
Dimensions: PREFALZ 500 = 2000 x 408 mm; PREFALZ 650 = 2000 x 558 mm
Weight: PREFALZ 500 = 15 kg (18 kg/m²); PREFALZ 650 = 21 kg (18 kg/m²)
Cell type: TOPCon
Allowable roof pitch: from 3° (5%) up to 60°
Hail resistance: HW4 (tested, value indicated for PREFALZ 500)
Materials: front glass 3.2 mm / rear glass 3.2 mm (glass/glass module)
Connector: standard MC4 male/female
Mounting: PREFALZ 500/650 central/end mounting on standing seam with anti-slip safety (number of fixings varies with pitch and location)

Features / technical specifications

• Product name: Module solaire PREFALZ
• Brand: PREFA
• Cell technology: TOPCon
• Module configuration: glass/glass (front 3.2 mm / rear 3.2 mm)
• Unit power: 150 Wp
• Available dimensions: 2000 x 408 mm (500); 2000 x 558 mm (650)
• Weight: 15 kg (500); 21 kg (650)
• Installation height: 70 mm
• Installation pitch: from 3° (5%)
• Connectors: MC4 male/female
• Module colour: black; fastenings: black anodized
• Performance warranty: 25 years (85% of nominal power after 25 years)
