Easy to install leveling system LEV / M

for tile

Description
Leveltec is a patented tile leveling system that enables tool‑free installation and disassembly. It is an automatic screw system that locks with a simple click and is designed for dry laying without adhesives. The system comprises a reusable cap and selectable tie‑bases (linear, T or cross) for joints of 2 mm, 3 mm and 5 mm (according to UNI EN 11493) or 1 mm joints. The cap is compatible with all tie‑bases and should be selected according to tile type and installation method.

Self-levelling function for tile laying
Leveltec ensures precise alignment of the top surface of floors or wall coverings by compensating for lack of flatness and subsequent adhesive shrinkage, providing an even laying result.

Materials and finishes available

• Leveltec system: LEV Green plastic cap (Profilitec)
• The cap is reusable, composed of two assembled elements: visible part in green Profilitec plastic and internal gripper in grey.

Table
Art.: LEV / M

Downloads / Technical resources referenced on page

• Leveltec - Brochure (PDF): https://www.profilitec.com/uploads/docs/Pieghevole%20Leveltec%202022%20-%20web.pdf
• Leveltec LEV - Datasheet (PDF): https://www.profilitec.com/uploads/docs/Profilitec_Catalogue-Leveltec_EN.pdf

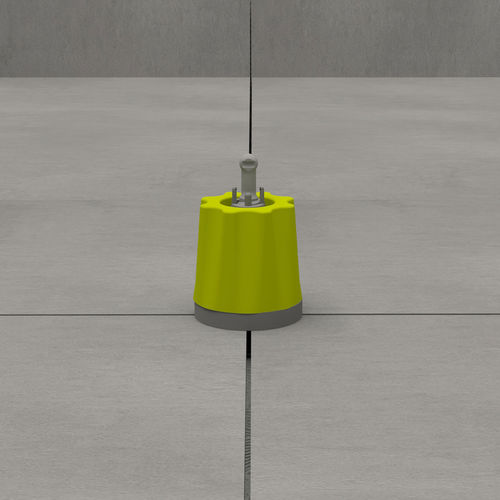

Technical image (assembled cap)
https://www.profilitec.com/uploads/catalog/technical/Profilitec_Technical-Section_Accessories_Leveltec-Cap-Assembled.gif

Characteristics / technical specifications

• System type: automatic screw levelling system (tool-free installation and disassembly)
• Installation condition: dry laying without adhesives
• Cap: reusable cap composed of two elements, supplied assembled
• Visible cap material/colour: green Profilitec plastic
• Internal gripper colour: grey
• Compatible tie-bases: linear, cross and T-shaped tie-bases
• Joint sizes supported: 1 mm; 2 mm, 3 mm and 5 mm (according to UNI EN 11493)
• Function: self-levelling to align floor surface with wall surface and to compensate adhesive shrinkage
• Article code: LEV / M
• Material: plastic
