Stainless steel joint cover COPRITEC CP

aluminumbrassfor wall

Product overview

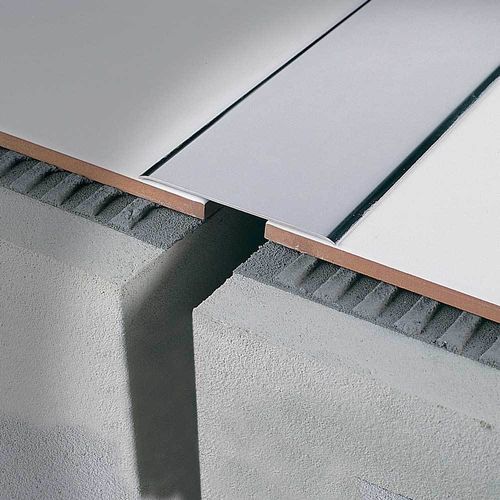

COPRITEC CP joint covers allow controlled differential movement between adjacent structures in large industrial, commercial and public buildings. Available with a movement-absorbing self-adhesive or as a non-adhesive profile. When mechanically fixing with screws, fasten screws on one side only to permit free movement on the other side. The profile can also be used as bumper protection for stretchers and as wall protection rails in public areas.

Applications

• Separation joint cover for large structural bays in industrial and commercial flooring
• Allows contraction and expansion between adjacent materials
• Bumper protection and wall protection rails in hospitals, offices and public buildings

Materials and finishes available
Stainless steel 430 / Polished
Profile in AISI 430 stainless steel, thickness 1.2 mm. Available with movement-absorbing self-adhesive (ILA) or without adhesive (ILN).

Aluminium / Anodized
Anodized aluminium profile, silver finish. Available with self-adhesive (ASA) or without adhesive (ASN).

Brass / Polished
Polished brass profile, thickness 1.2 mm. Available with self-adhesive (OLA) or without adhesive (OLN).

Article codes and sizes

• Available widths (B): 60 mm, 80 mm, 100 mm
• Typical codes: CP 60/80/100 with suffixes indicating material and adhesive option (examples: CP 60 ILA, CP 80 ASA, CP 100 OLN)

Downloads and technical resources
Datasheet, technical drawings and CAD packages (ZIP) available for stainless steel, aluminium and brass variants.

Characteristics / Specifications

• Model: COPRITEC CP
• Function: separation joint cover allowing differential movement
• Installation: self-adhesive (movement-absorbing ASA/ILA) or non-adhesive (ILN/ASN/OLN); if mechanically anchored, fix screws on one side only
• Materials: Polished Brass, Anodized Aluminium (silver), Polished Stainless Steel (AISI 430)
• Finishings: Polished, Anodized
• Profile thickness: 1.2 mm (stainless steel and brass)
• Widths: 60 mm, 80 mm, 100 mm
• Suitable for: industrial and commercial flooring, bumper protection, wall protection in public buildings
• Resources: datasheet and CAD/technical drawings available for download
