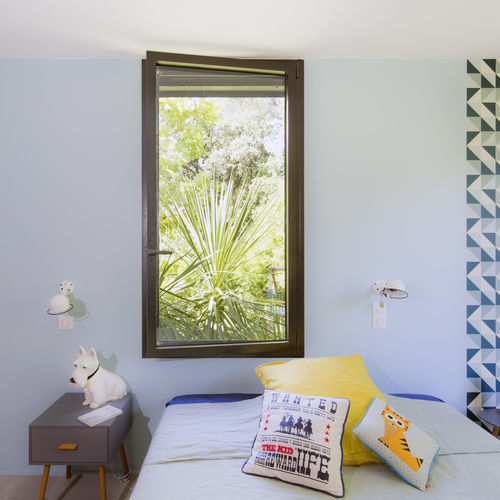

Casement window 713OC CUZCO®
tilt-and-turnfixedtop-hung

casement window
casement window
casement window
casement window
casement window
Add to favorites
Compare this product


Characteristics

Opening system
casement, tilt-and-turn, fixed, top-hung
Material
aluminum
Glazing
double-glazed, triple-glazed
Performance
thermally-insulated, acoustic
Other characteristics
for commercial buildings, custom, residential

Description

713 OC Series is the very latest generation of upgradeable thermal insulation casement joinery with a concealed vent frame created by Profils Systèmes. It can be used for new buildings and renovation work for windows and French casement windows with very high thermal performance. Its very refined FACTORY SPIRIT® design optimises daylight and offers new architectural possibilities. Highlights : - Compliant with French regulations RT 2012 - BBC low-energy consumption building seal of approval - Optimised sunlight exposure - Reduction in heating & lighting costs - Possibility of lock and key closure - Dual colour possible - Reduced sill for disabled access - Available in all Profils Systèmes’ exclusive colours : Terra Cigala®, Maohé®, Eclats Métalliques®, Profils Color®, Terre de Matières® - Colour shades guaranteed up to 25 years* Thermal Performances : 70mm module - 3 levels of performance are available depending on the thermal shield chosen and overall performance required. - Thermal bridge standard THERMIQUE TH: Uw=1,5W/m2K | Sw= 0,47 | Tlw= 0,60 - Thermal bridge standard BOUCLIER TH+: Uw=1,4W/m2K | Sw= 0,47 | Tlw= 0,60 - Thermal bridge standard BOUCLIER TH Max: Uw=1,3W/m2K | Sw= 0,47 | Tlw= 0,60 For a window with 2 leaves L1530 x H1480mm – Double glazing: Ug: 1.1 avec Swisspacer ULTIMATE spacer Design : - Factory Spirit® Straight cut design Models : - Eurogroove or 16mm groove - Frame with glazing beads - 100 to 200mm monoblock modules
