Characteristics

  • Type:

    entry

  • Opening system:

    swing

  • Material:

    aluminum

  • Technical characteristics:

    security, thermally-insulated, burglar-proof, high-resistance, emergency exit, waterproof, wind-proof

  • Other characteristics:

    glazed, double

  • Height:

    2,400 mm, 3,000 mm (94.49 in)

  • Width:

    1,100 mm, 2,000 mm (43.31 in)

Description

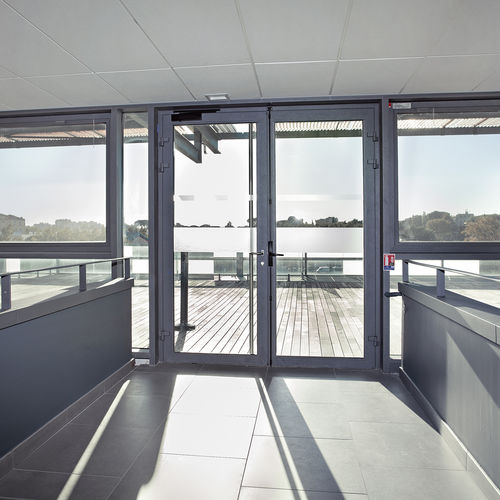

CUZCO® Series 716 with straight design FACTORY SPIRIT® is used in constructing heavy duty doors, with thermal break via 30 to 35 mm polyamide strips. CUZCO® door is available for new builds or renovation.

Highlights
Thermal ratings superior to RT 2012
FACTORY SPIRIT® straight Design
Multi-point locking (up to 5 points)
Disabled access sill
Dual colour possible
Available in all Profils Syste?mes’ exclusive colours : Terra Cigala®, Maohe?®, Eclats Me?talliques®, Profils Color®, Terre de Matie?res®
Colour shades guaranteed up to 25 years*
Thermal performances
• Ud= 1.2 Wm2K | Sw=0.42 | Tlw=0.52 | Warmedge - Ug=0.6 - Triple glazing Door chassis 1 leaf Dimension CE < 3,6 m2

• Ud= 1.5 Wm2K | Sw=0.38 | Tlw=0.51 | Warmedge - Ug=1.0 - Double glazing Door 1 leaf Dimension CE < 3,6 m2

Max Dimensions
1 leaf: L1100 x H2400mm
2 leaves: L2000 x H2400mm
Gamme
1 or 2 leaves
Inward or outward opening with thermal break
Design
Factory Spirit® straight-cut design

TECHNICAL DETAILS
Fixed frame / Opening section
Tubular 70 mm thick
Thermal insulation via 30 to 35 mm polyamid strips provides an excellent insulation coef cient
Inward or outward opening with thermal break
Mounting
Mitre-cut mounting with crimped or pinned corner cleats. All fixings are either in aluminium or stainless steel
Locking
Lock with up to 5 points
Modern ironmongery available, anti-panic, doorcloser, lever action bolt or electric lock.
Ironmongery
Surface-mounted or slide-in hinges
Anti-panic
Pull handle
Electric striking plate
5-point lock / Sliding bolt / Rollers
Weather Tightness
Weather Tightness by compression of 2 identical EPDM batten and rotating gaskets during closing.
